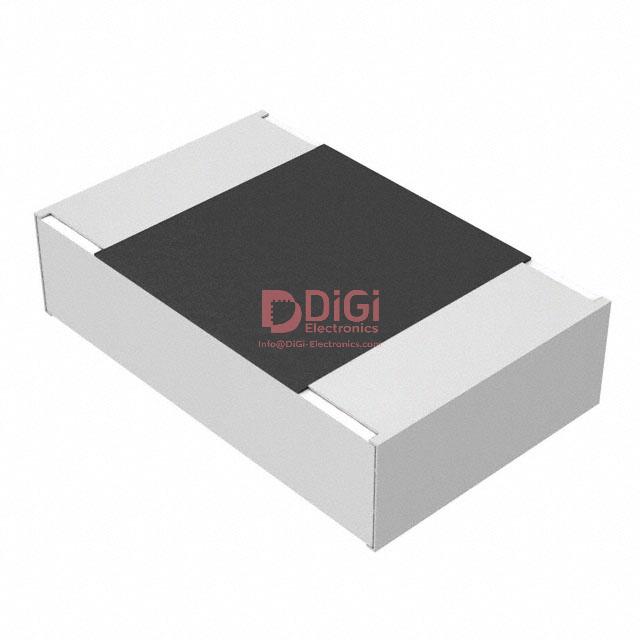

ERA-6AEB103V The Panasonic Electronic Components ERA-6AEB103V is a surface mount chip resistor with 10 kΩ resistance and a ±0.1% tolerance. It is rated for 1/8W power and features an 0805 package.
Mfr Part #:

ERA-6AEB103V

Available from 5 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic Electronic Components ERA-6AEB103V is a surface mount chip resistor with 10 kΩ resistance and a ±0.1% tolerance. It is rated for 1/8W power and features an 0805 package.
✓ Total Stock: 20,470 pcs
$ Price Range: $0.05

ERA-6AEB103V Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ERA-6AEB103V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Composition
Features
Height
Industrial Grade
Length
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

ERA-6AEB103V Description

Short technical summary and product information.

This Panasonic Electronic Components ERA-6AEB103V is a surface mount chip resistor designed for various electronic applications. It offers a precise resistance value of 10 kΩ with a tight tolerance of ±0.1%, making it suitable for applications requiring accuracy.



The resistor has a power rating of 0.125W (1/8W) and is constructed with thin film technology. It operates within a wide temperature range of -55°C to 155°C, with a temperature coefficient of ±25ppm/°C.



Packaged in an 0805 (2012 Metric) case, this component is ideal for automated assembly processes. Its features include Automotive AEC-Q200 qualification, indicating its suitability for demanding automotive environments. The dimensions are 2.00mm x 1.25mm, with a height of 0.60mm.



This component is also noted for its reliability and performance in harsh conditions, making it a robust choice for industrial and automotive designs.

ERA-6AEB103V Quick Information

Product Type: Chip Resistor - Surface Mount
Series: ERA-6A
Canonical Name: Panasonic Electronic Components ERA-6AEB103V Chip Resistor - Surface Mount 10 kΩ ±0.1% 0.125W Thin Film AEC-Q200
Subcategory: Surface Mount

ERA-6AEB103V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ERA-6AEB103V Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

ERA-6AEB103V Features

  • 10 kΩ resistance with ±0.1% tolerance.
  • Rated for 0.125W (1/8W) power.
  • Thin film composition for stability.
  • Wide operating temperature range.
  • AEC-Q200 qualified for automotive use.

ERA-6AEB103V Applications

  • Suitable for automotive applications.
  • Ideal for precision circuits.
  • Surface mount assembly.
  • General purpose electronic designs.

ERA-6AEB103V FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the ERA-6AEB103V resistor?

The ERA-6AEB103V resistor has a resistance value of 10 kΩ.

What is the tolerance of the ERA-6AEB103V resistor?

The tolerance of the ERA-6AEB103V resistor is ±0.1%.

What is the power rating of the ERA-6AEB103V resistor?

The power rating of the ERA-6AEB103V resistor is 0.125W, or 1/8W.

What is the operating temperature range for the ERA-6AEB103V resistor?

The operating temperature range for the ERA-6AEB103V resistor is -55°C to 155°C.

What package size is the ERA-6AEB103V resistor supplied in?

The ERA-6AEB103V resistor is supplied in an 0805 (2012 Metric) package.

Is the ERA-6AEB103V resistor AEC-Q200 qualified?

Yes, the ERA-6AEB103V resistor is AEC-Q200 qualified.
