| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,921 pcs
|
6921 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Limiting Element Voltage | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

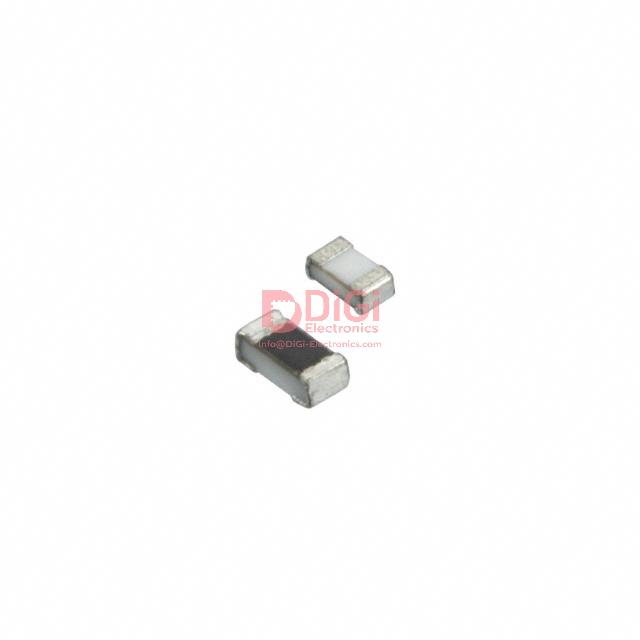

This Panasonic ERA-3YEB152V is a surface mount chip resistor from the ERA series, featuring a metal film construction. It offers a resistance value of 1.5 kΩ with a tight tolerance of ±0.1% and a power rating of 0.1W (1/10W) at 70°C or lower. The operating temperature range is -55°C to 125°C.
The component comes in a compact 0603 (1608 Metric) package, measuring 1.60mm in length and 0.80mm in width. Its height is 0.55mm. The temperature coefficient is ±25ppm/°C. This resistor is suitable for standard electronic equipment applications.
Key electrical characteristics include a limiting element voltage of 75V. The resistor is constructed with a NiCr alloy resistive element, alumina substrate, and Sn plating for outer terminations. It is designed for surface mounting, making it ideal for automated assembly processes in various electronic devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 1.5 kΩ.
The tolerance is ±0.1%.
The power rating is 0.1W (1/10W) at 70°C or lower.
The operating temperature range is -55°C to 125°C.
It is available in the 0603 (1608 Metric) package.
The temperature coefficient is ±25ppm/°C.
Yes, it features Anti-Sulfur and Automotive AEC-Q200 compliance.
