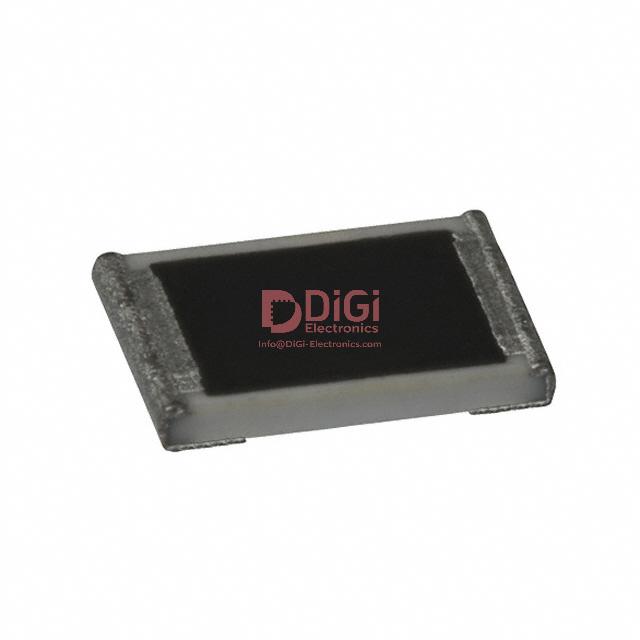

ERA-3ARW153V The Panasonic Electronic Components ERA-3ARW153V is a surface mount chip resistor with 15 kOhms resistance and a tolerance of ±0.05%. It is rated for 0.1W and features AEC-Q200 automotive qualification.
Mfr Part #:

ERA-3ARW153V

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic Electronic Components ERA-3ARW153V is a surface mount chip resistor with 15 kOhms resistance and a tolerance of ±0.05%. It is rated for 0.1W and features AEC-Q200 automotive qualification.
✓ Total Stock: 26 pcs
$ Price Range: $0.05

ERA-3ARW153V Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
26 pcs
On Request
26 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ERA-3ARW153V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Composition
Features
Height
Industrial Grade
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

ERA-3ARW153V Description

Short technical summary and product information.

The ERA-3ARW153V from Panasonic Electronic Components is a thin film chip resistor designed for surface mount applications. It offers a precise resistance value of 15 kOhms with a tight tolerance of ±0.05%, making it suitable for applications requiring accuracy.



This component is rated for a power of 0.1W (1/10W) and operates within a temperature range of -55°C to 155°C, with a temperature coefficient of ±10ppm/°C. The resistor features automotive AEC-Q200 qualification, indicating its suitability for demanding automotive environments.



Packaged in a compact 0603 (1608 Metric) case, the ERA-3ARW153V is designed for automated assembly processes. Its dimensions are 1.60mm in length and 0.80mm in width, with a height of 0.55mm. The device has 2 terminations and is supplied on tape and reel for efficient manufacturing.



Key electrical characteristics include its 15 kOhm resistance and ±0.05% tolerance. The AEC-Q200 rating highlights its robustness for automotive applications. The thin film composition ensures stable performance across its operating temperature range.

ERA-3ARW153V Quick Information

Product Type: Chip Resistor - Surface Mount
Series: ERA-3A
Canonical Name: Panasonic Electronic Components ERA-3ARW153V Chip Resistor - Surface Mount 15 kOhms ±0.05% 0.1W AEC-Q200
Subcategory: Surface Mount

ERA-3ARW153V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ERA-3ARW153V Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

ERA-3ARW153V Features

  • 15 kOhms resistance with ±0.05% tolerance.
  • 0.1W power rating suitable for various applications.
  • AEC-Q200 qualified for automotive use.
  • Thin film composition for stable performance.
  • Compact 0603 (1608 Metric) surface mount package.

ERA-3ARW153V Applications

  • Ideal for automotive electronic systems.
  • Suitable for precision signal conditioning.
  • Used in general purpose electronic circuits.
  • Applicable in temperature-sensitive designs.

ERA-3ARW153V FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the ERA-3ARW153V chip resistor?

The ERA-3ARW153V chip resistor has a resistance value of 15 kOhms.

What is the tolerance of the ERA-3ARW153V resistor?

The tolerance of the ERA-3ARW153V resistor is ±0.05%.

What is the power rating for the ERA-3ARW153V chip resistor?

The ERA-3ARW153V chip resistor has a power rating of 0.1W, or 1/10W.

What is the temperature coefficient of the ERA-3ARW153V?

The temperature coefficient of the ERA-3ARW153V is ±10ppm/°C.

What is the operating temperature range for the ERA-3ARW153V?

The operating temperature range for the ERA-3ARW153V is -55°C to 155°C.

What package size is the ERA-3ARW153V resistor supplied in?

The ERA-3ARW153V resistor is supplied in the 0603 (1608 Metric) package size.

Does the ERA-3ARW153V meet automotive standards?

Yes, the ERA-3ARW153V features Automotive AEC-Q200 qualification.
