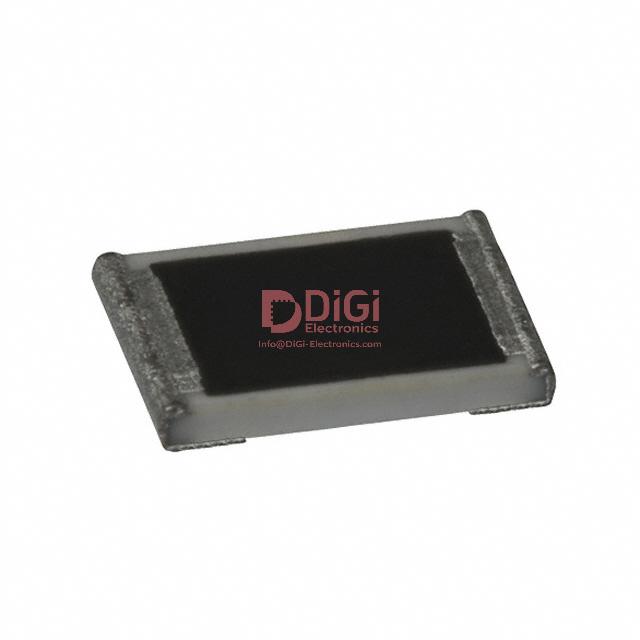

ERA-3APB471V The Panasonic Electronic Components ERA-3APB471V is a surface mount chip resistor with 470 Ohms resistance and a ±0.1% tolerance. It is rated for 0.1W and features AEC-Q200 compliance.
Mfr Part #:

ERA-3APB471V

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic Electronic Components ERA-3APB471V is a surface mount chip resistor with 470 Ohms resistance and a ±0.1% tolerance. It is rated for 0.1W and features AEC-Q200 compliance.
✓ Total Stock: 24 pcs
$ Price Range: $0.05

ERA-3APB471V Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
24 pcs
On Request
24 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ERA-3APB471V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Industrial Grade
Length
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

ERA-3APB471V Description

Short technical summary and product information.

The ERA-3APB471V from Panasonic Electronic Components is a thin film chip resistor designed for surface mount applications. It offers a precise resistance value of 470 Ohms with a tight tolerance of ±0.1%, making it suitable for applications requiring accuracy.



This component is rated for 0.1W (1/10W) power and operates within a temperature range of -55°C to 155°C, with a temperature coefficient of ±15ppm/°C. Its construction is thin film, and it meets the Automotive AEC-Q200 standard, indicating its suitability for automotive environments.



The resistor comes in a compact 0603 (1608 Metric) package, measuring 1.60mm in length, 0.80mm in width, and 0.55mm in height. It has 2 terminations. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.

ERA-3APB471V Quick Information

Product Type: Chip Resistor
Series: ERA-3A
Canonical Name: ERA-3APB471V Thin Film Chip Resistor
Subcategory: Surface Mount

ERA-3APB471V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ERA-3APB471V Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

ERA-3APB471V Features

  • 470 Ohm resistance with ±0.1% tolerance.
  • 0.1W power rating at 0603 package size.
  • AEC-Q200 automotive qualification.
  • Thin film construction for precision.
  • Wide operating temperature range.

ERA-3APB471V Applications

  • Suitable for automotive circuits.
  • Ideal for precision signal processing.
  • Used in compact electronic designs.
  • General purpose surface mount applications.

ERA-3APB471V FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the ERA-3APB471V chip resistor?

The resistance value is 470 Ohms.

What is the tolerance of the ERA-3APB471V resistor?

The tolerance is ±0.1%.

What is the power rating for the ERA-3APB471V chip resistor?

The power rating is 0.1W, or 1/10W.

What is the operating temperature range for this component?

The operating temperature range is -55°C to 155°C.

What package size is the ERA-3APB471V resistor supplied in?

It is supplied in a 0603 (1608 Metric) package.

Does the ERA-3APB471V meet automotive standards?

Yes, it features Automotive AEC-Q200 qualification.
