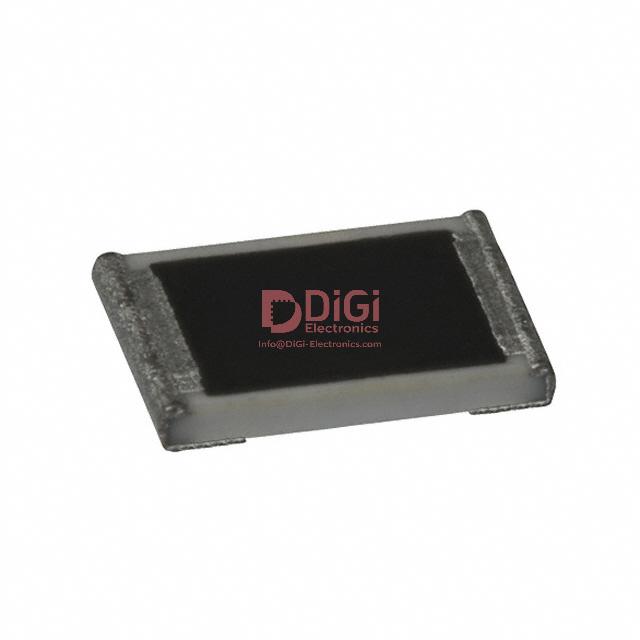

ERA-3AEB334V The Panasonic Electronic Components ERA-3AEB334V is a surface mount chip resistor with a resistance of 330 kOhms and a tolerance of ±0.1%. It has a power rating of 0.1W and comes in an 0603 package.
Mfr Part #:

ERA-3AEB334V

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic Electronic Components ERA-3AEB334V is a surface mount chip resistor with a resistance of 330 kOhms and a tolerance of ±0.1%. It has a power rating of 0.1W and comes in an 0603 package.
✓ Total Stock: 13 pcs
$ Price Range: $0.05

ERA-3AEB334V Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
13 pcs
On Request
13 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ERA-3AEB334V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

ERA-3AEB334V Description

Short technical summary and product information.

This Panasonic Electronic Components ERA-3AEB334V is a thin film chip resistor designed for surface mount applications. It offers a precise resistance value of 330 kOhms with a tight tolerance of ±0.1%, making it suitable for applications requiring accuracy.



The resistor has a power rating of 0.1W (1/10W) and operates within a temperature range of -55°C to 155°C, with a temperature coefficient of ±25ppm/°C. The component is housed in a compact 0603 (1608 Metric) package, measuring 1.60mm in length and 0.80mm in width.



Designed with automotive applications in mind, it meets AEC-Q200 standards. The packaging is available in Cut Tape (CT) and Digi-Reel® formats, facilitating automated assembly processes.

ERA-3AEB334V Quick Information

Product Type: Chip Resistor - Surface Mount
Series: ERA-3A
Canonical Name: Panasonic Electronic Components ERA-3AEB334V Chip Resistor - Surface Mount 330 kOhms ±0.1% 0.1W 0603
Subcategory: Surface Mount

ERA-3AEB334V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ERA-3AEB334V Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

ERA-3AEB334V Features

  • 330 kOhms resistance with ±0.1% tolerance.
  • 0.1W power rating in 0603 package.
  • Thin film composition for stability.
  • Wide operating temperature range.
  • Automotive AEC-Q200 qualified.

ERA-3AEB334V Applications

  • Suitable for precision circuits.
  • Ideal for automotive applications.
  • Surface mount assembly.
  • General purpose electronic designs.

ERA-3AEB334V FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the ERA-3AEB334V?

The resistance value is 330 kOhms.

What is the tolerance of this chip resistor?

The tolerance is ±0.1%.

What is the power rating for the ERA-3AEB334V?

The power rating is 0.1W, or 1/10W.

What is the operating temperature range?

The operating temperature range is -55°C to 155°C.

What package size does this resistor use?

It uses the 0603 (1608 Metric) package size.

Does this resistor meet automotive standards?

Yes, it features Automotive AEC-Q200 compliance.
