Mfr Part #:

ERA-3AEB242V

Mfr Name: Panasonic Electronic Components

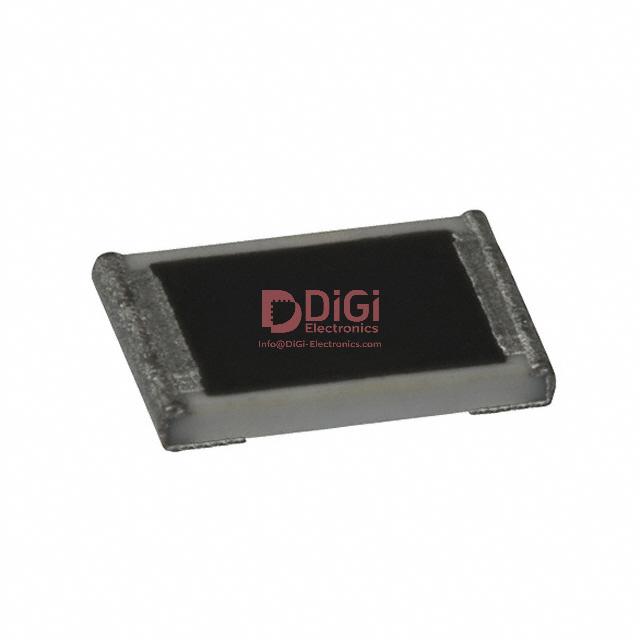

The Panasonic Electronic Components ERA-3AEB242V is a thin film chip resistor with a resistance of 2.4 kOhms and a tolerance of ±0.1%. It is rated for 1/10W power and comes in a 0603 package.

✓ Total Stock: 5,014 pcs

$ Price Range: $0.05

ERA-3AEB242V Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	4,954 pcs On Request	4954 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	60 pcs On Request	60 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

ERA-3AEB242V Description

Short technical summary and product information.

This Panasonic Electronic Components ERA-3AEB242V is a surface mount chip resistor designed for various electronic applications. It features a precise resistance value of 2.4 kOhms with a tight tolerance of ±0.1%, ensuring accuracy in circuit performance.

The resistor has a power rating of 0.1W (1/10W) and is constructed with thin film technology. It operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±25ppm/°C.

Packaged in a compact 0603 (1608 Metric) case, this component is suitable for automated assembly processes. Its AEC-Q200 rating indicates suitability for automotive applications, highlighting its reliability and durability under demanding conditions.

ERA-3AEB242V Quick Information

Product Type: Chip Resistor - Surface Mount

Series: ERA-3A

Canonical Name: Panasonic Electronic Components ERA-3AEB242V Thin Film Chip Resistor, 2.4 kOhms, ±0.1%, 1/10W, 0603

Subcategory: Surface Mount

ERA-3AEB242V Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ERA-3AEB242V Estimated Pricing

Qty	Low	High
1+	$0.05	$0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

ERA-3AEB242V Features

2.4 kOhms resistance with ±0.1% tolerance.
1/10W power rating for efficient operation.
Thin film construction for precision.
Automotive AEC-Q200 qualified.
Compact 0603 package size.

ERA-3AEB242V Applications

Suitable for automotive applications.
Ideal for precision circuits.
Surface mount assembly compatible.
General electronic circuit use.

ERA-3AEB242V FAQs

6 frequently asked questions generated from this part’s specifications.

What is the resistance value of the ERA-3AEB242V chip resistor?

The ERA-3AEB242V chip resistor has a resistance value of 2.4 kOhms.

What is the tolerance of the ERA-3AEB242V resistor?

The tolerance of the ERA-3AEB242V resistor is ±0.1%.

What is the power rating for the ERA-3AEB242V chip resistor?

The power rating for the ERA-3AEB242V chip resistor is 0.1W, or 1/10W.

What is the operating temperature range for the ERA-3AEB242V?

The operating temperature range for the ERA-3AEB242V is -55°C to 155°C.

What package size is the ERA-3AEB242V resistor available in?

The ERA-3AEB242V resistor is available in the 0603 (1608 Metric) package size.

Does the ERA-3AEB242V meet automotive standards?

Yes, the ERA-3AEB242V features Automotive AEC-Q200 ratings.

Category	Chip Resistor - Surface Mount
Manufacturer Name	Panasonic Electronic Components
AEC Qualified	Yes
Automotive Grade	AEC-Q200
Composition	Thin Film
Features	Automotive AEC-Q200
Height	0.55mm (0.022")
Industrial Grade	Yes
Length	1.60mm (0.063")
Medical Grade	No
Military Grade	No
Number of Terminations	2
Operating Temperature	-55°C ~ 155°C
Power (Watts)	0.1W, 1/10W
Ratings	AEC-Q200
Resistance	2.4 kOhms
Storage Temperature	°C ~ °C
Supplier Device Package	0603
Tape & Reel	Tape & Reel (TR)
Temperature Coefficient	±25ppm/°C
Tolerance	±0.1%
Width	0.80mm (0.031")
