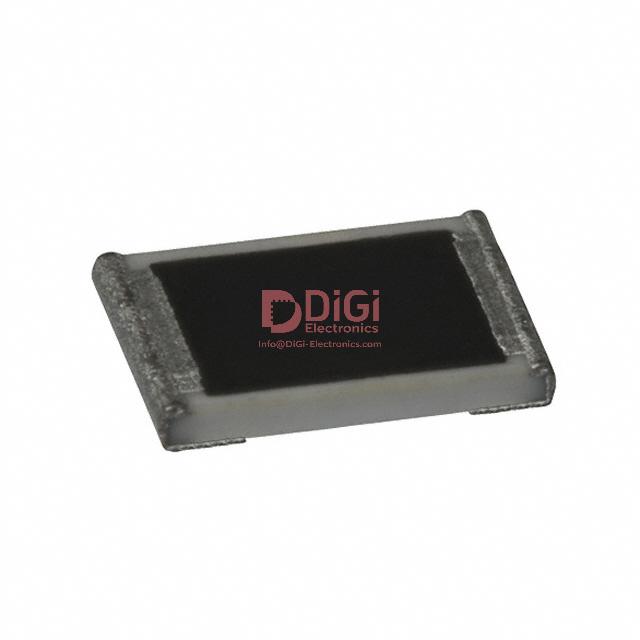

ERA-3AEB222V The Panasonic Electronic Components ERA-3AEB222V is a thin film chip resistor with a resistance of 2.2 kOhms and a tolerance of ±0.1%. It is rated for 0.1W and features AEC-Q200 automotive qualification.
Mfr Part #:

ERA-3AEB222V

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic Electronic Components ERA-3AEB222V is a thin film chip resistor with a resistance of 2.2 kOhms and a tolerance of ±0.1%. It is rated for 0.1W and features AEC-Q200 automotive qualification.
✓ Total Stock: 93 pcs
$ Price Range: $0.05

ERA-3AEB222V Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
93 pcs
On Request
93 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ERA-3AEB222V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Composition
Features
Height
Industrial Grade
Lead Spacing
Length
Medical Grade
Military Grade
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Storage Temperature
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

ERA-3AEB222V Description

Short technical summary and product information.

This Panasonic Electronic Components ERA-3AEB222V is a surface mount chip resistor designed for demanding applications. It offers a precise resistance value of 2.2 kOhms with a tight tolerance of ±0.1%, ensuring accuracy in circuit performance.



The resistor has a power rating of 0.1W (1/10W) and is constructed with thin film technology. It operates within a wide temperature range of -55°C to 155°C, with a temperature coefficient of ±25ppm/°C.



Designed for automotive applications, it meets the AEC-Q200 standard. The component comes in a compact 0603 (1608 Metric) package, suitable for surface mounting. Its dimensions are 1.60mm in length and 0.80mm in width, with a height of 0.55mm.



Key electrical characteristics include its thin film composition and a ±0.1% tolerance, making it ideal for applications requiring stable and precise resistance values. The AEC-Q200 rating signifies its suitability for the harsh conditions often found in automotive environments.

ERA-3AEB222V Quick Information

Product Type: Chip Resistor
Series: ERA-3A
Canonical Name: Panasonic Electronic Components ERA-3AEB222V Thin Film Chip Resistor, 2.2 kOhms, ±0.1%
Subcategory: Surface Mount

ERA-3AEB222V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ERA-3AEB222V Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

ERA-3AEB222V Features

  • Thin film chip resistor for precise applications.
  • 2.2 kOhms resistance with ±0.1% tolerance.
  • 0.1W power rating suitable for various circuits.
  • AEC-Q200 qualified for automotive use.
  • Compact 0603 (1608 Metric) surface mount package.

ERA-3AEB222V Applications

  • Ideal for automotive electronic systems.
  • Suitable for precision signal conditioning.
  • Used in compact electronic assemblies.
  • Applicable in temperature-sensitive circuits.

ERA-3AEB222V FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the ERA-3AEB222V chip resistor?

The ERA-3AEB222V chip resistor has a resistance value of 2.2 kOhms.

What is the tolerance of the ERA-3AEB222V resistor?

The tolerance of the ERA-3AEB222V resistor is ±0.1%.

What is the power rating for the ERA-3AEB222V chip resistor?

The power rating for the ERA-3AEB222V chip resistor is 0.1W, or 1/10W.

What is the operating temperature range for the ERA-3AEB222V?

The operating temperature range for the ERA-3AEB222V is -55°C to 155°C.

What package type is the ERA-3AEB222V chip resistor supplied in?

The ERA-3AEB222V chip resistor is supplied in a 0603 (1608 Metric) package, typically on tape and reel.

Does the ERA-3AEB222V meet automotive standards?

Yes, the ERA-3AEB222V features Automotive AEC-Q200 qualification.
