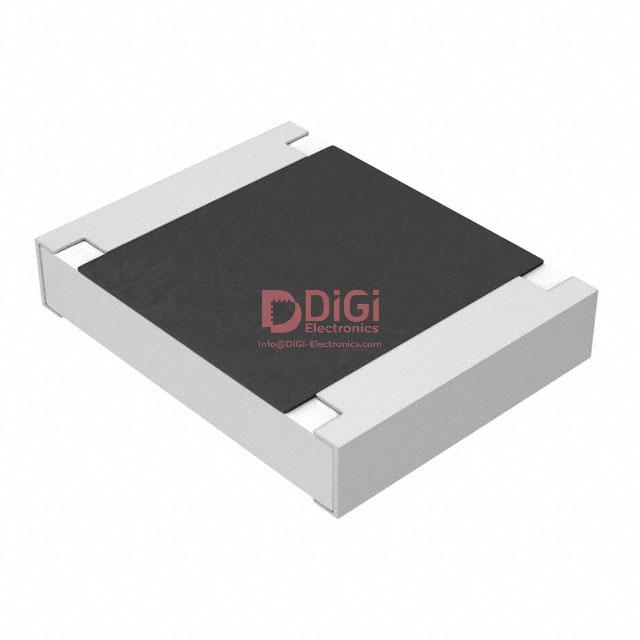

ERA-3AEB203V The Panasonic ERA-3AEB203V is a thin film chip resistor with a resistance of 20 kΩ and a tolerance of ±0.1%. It is rated for 0.1W and operates within a temperature range of -55°C to 155°C.
Mfr Part #:

ERA-3AEB203V

Available from 4 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic ERA-3AEB203V is a thin film chip resistor with a resistance of 20 kΩ and a tolerance of ±0.1%. It is rated for 0.1W and operates within a temperature range of -55°C to 155°C.
✓ Total Stock: 5,164 pcs
$ Price Range: $0.05

ERA-3AEB203V Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ERA-3AEB203V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Industrial Grade
Length
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Ratings
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

ERA-3AEB203V Description

Short technical summary and product information.

This Panasonic ERA-3AEB203V is a surface mount chip resistor from the ERA-3AE series. It features a thin film composition, offering a precise resistance value of 20 kΩ with a tight tolerance of ±0.1%. The resistor is designed for a power rating of 0.1W (1/10W) and can operate across a wide temperature range from -55°C to 155°C, with a temperature coefficient of ±25ppm/°C.



Packaged in a compact 0603 (1608 Metric) case, this component is suitable for automated assembly processes. Its dimensions are 1.60mm in length and 0.80mm in width, with a height of 0.55mm. The part is also rated for Automotive AEC-Q200, indicating its suitability for demanding automotive applications.



With its combination of precision, power handling, and environmental robustness, the ERA-3AEB203V is a reliable choice for various electronic circuits requiring accurate resistance values.

ERA-3AEB203V Quick Information

Product Type: Chip Resistor
Series: ERA-3AE
Canonical Name: ERA-3AEB203V Thin Film Chip Resistor
Subcategory: Surface Mount

ERA-3AEB203V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ERA-3AEB203V Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

ERA-3AEB203V Features

  • Thin film chip resistor for precision.
  • 20 kΩ resistance with ±0.1% tolerance.
  • 0.1W power rating at 0603 package size.
  • Wide operating temperature range: -55°C to 155°C.
  • Automotive AEC-Q200 qualified.

ERA-3AEB203V Applications

  • Suitable for precision circuits.
  • Ideal for automotive applications.
  • Used in compact electronic designs.
  • Requires tight resistance control.

ERA-3AEB203V FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the ERA-3AEB203V?

The resistance value is 20 kΩ.

What is the tolerance of the ERA-3AEB203V chip resistor?

The tolerance is ±0.1%.

What is the power rating for the ERA-3AEB203V?

The power rating is 0.1W, or 1/10W.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 155°C.

What package size is the ERA-3AEB203V resistor in?

The resistor is in a 0603 (1608 Metric) package.

Is the ERA-3AEB203V suitable for automotive applications?

Yes, it features Automotive AEC-Q200 ratings.
