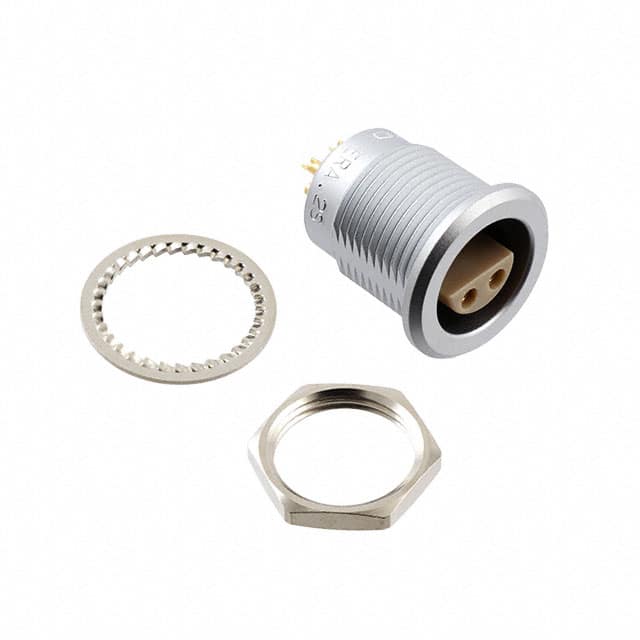

The LEMO ERA.2S.304.CLL is a 4-position circular receptacle from the S Series (Indoor Stepped Insert). It features a fixed panel front mount with bulkhead rear side nut fixing. The connector uses a push-pull locking mechanism and hermaphroditic keying with a half-moon insert and female pin 1 for orientation.
Electrical specifications include a current rating of 15 A, contact resistance of 3.6 mOhm maximum, and test voltage of 1700 V AC / 2400 V DC. The contacts are gold-plated and terminated via solder cups, accepting wire gauges from 28 AWG to 20 AWG (max conductor 0.5 mm²). The insulator is made of PEEK with UL94 V-0 flammability rating.
The shell is machined from brass with chrome plating per SAE AMS 2460, and the latch sleeve and mid pieces are nickel-plated brass. The connector is shielded with 75 dB attenuation at 10 MHz and 40 dB at 1 GHz. Environmental ratings include IP50 dust protection, operating temperature range -55°C to 250°C, and 5000 mating cycles endurance.
It has 4 positions (low voltage contacts).
The current rating is 15 A.
It uses solder cup termination.
-55°C to 250°C.
IP50 (dust protected).
28 AWG to 20 AWG (max conductor 0.5 mm²).
