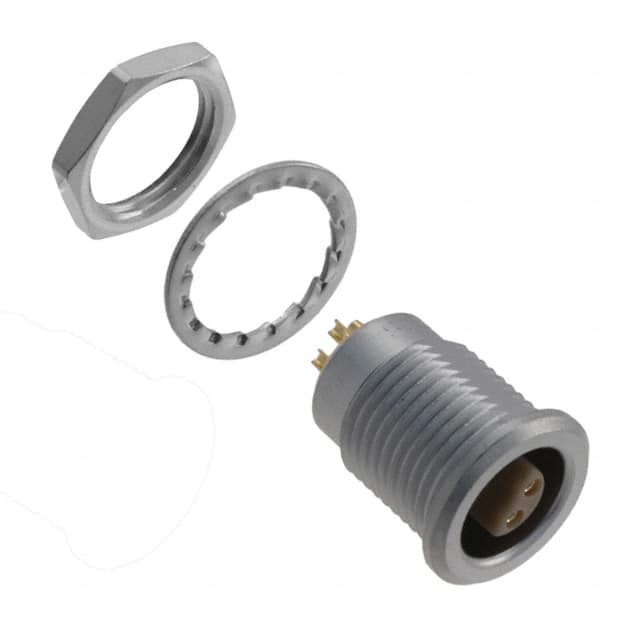

The LEMO ERA.1S.304.CLL is a fixed panel-mounted circular receptacle from the S series, featuring a push-pull locking mechanism and hermaphroditic keying. It accommodates 4 low-voltage contacts with solder cup termination, accepting wire sizes from 30 AWG to 22 AWG (max solid conductor 0.34 mm²).
Electrical performance includes a current rating of 10 A, contact resistance of 4.8 mOhm maximum, and dielectric withstanding voltage of 1200 V AC and 1800 V DC. The connector is shielded, providing 75 dB attenuation at 10 MHz and 40 dB at 1 GHz.
Mechanically, the brass shell with chrome plating and gold-plated contacts ensures durability and corrosion resistance. It withstands 5000 mating cycles, 100 g shock for 6 ms, and 15 g vibration from 10 Hz to 2000 Hz. Operating temperature ranges from -55°C to 250°C, with IP50 ingress protection and over 1000 hours of salt spray resistance.
The insulator is made of PEEK (UL 94 V-0), and the connector weighs 8.35 g. A compatible dust cap (BRE.1S.200.NAS) and mating plug (FFA.1S.304.CLAC22) are available.
The current rating is 10 A.
The operating temperature range is -55°C to 250°C.
The IP rating is IP50 (dust protected).
It has 4 contacts (female sockets).
Panel mount with bulkhead rear side nut.
It accepts wire sizes from 30 AWG to 22 AWG.
