ER3105DI The Intel ER3105DI is a 500mA synchronous buck regulator designed for a wide input voltage range of 3V to 36V. It offers an adjustable output and operates with a switching frequency from 300kHz to 2MHz.
Mfr Part #:

ER3105DI

Available from 1 distributors
Mfr Name: Intel
Intel
The Intel ER3105DI is a 500mA synchronous buck regulator designed for a wide input voltage range of 3V to 36V. It offers an adjustable output and operates with a switching frequency from 300kHz to 2MHz.
✓ Total Stock: 3,667 pcs
$ Price Range: $0.16

ER3105DI Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
3,667 pcs
On Request
3667 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ER3105DI Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Function
Input Voltage
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Current
Output Type
Supplier Device Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

ER3105DI Description

Short technical summary and product information.

The Altera Enpirion ER3105DI is a 500mA synchronous buck regulator featuring a wide input voltage range from 3V to 36V. This device provides an easy-to-use, high-efficiency solution with a low Bill of Materials (BOM) count for various applications.



The ER3105DI integrates high-side and low-side NMOS FETs and includes a selectable PFM or forced PWM mode for efficiency at light loads. The switching frequency can be programmed from 300kHz to 2MHz using an external resistor, with a default frequency of 500kHz. It supports internal or external compensation and soft-start options, minimizing external component requirements.

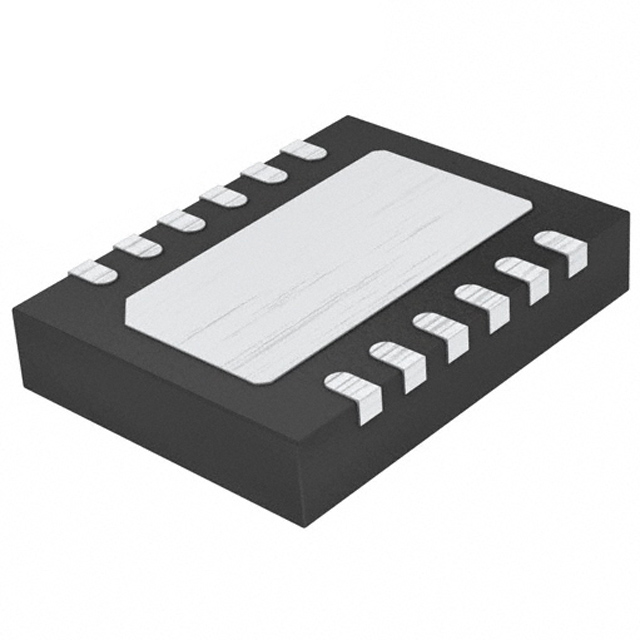

This regulator is available in a compact 4mmx3mm DFN plastic package, suitable for surface mounting. It operates within a temperature range of -40°C to 125°C, making it robust for industrial, battery, and FPGA power applications.



Key features include synchronous operation for high efficiency, integrated FETs, selectable PFM/PWM modes, and adjustable switching frequency. The part also offers power-good and enable functions.

ER3105DI Quick Information

Product Type: DC DC Switching Regulator
Canonical Name: ER3105DI Synchronous Buck Regulator
Subcategory: DC-DC Switching Regulator

ER3105DI Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ER3105DI Estimated Pricing

Qty Low High
1+ $0.16 $0.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

ER3105DI Features

  • Wide 3V to 36V input voltage range.
  • 500mA continuous output current.
  • Adjustable output voltage.
  • 300kHz to 2MHz programmable switching frequency.
  • Compact 4mmx3mm DFN surface-mount package.

ER3105DI Applications

  • FPGA power applications.
  • Digital processor power supplies.
  • Industrial control systems.
  • Battery-powered devices.
  • Portable instrumentation.

ER3105DI FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the ER3105DI?

The input voltage range is 3V to 36V.

What is the output current capability?

The output current is 500mA (0.5A).

What is the switching frequency range?

The switching frequency is adjustable from 300kHz to 2MHz.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C.

What package does the ER3105DI come in?

It is available in a 12-DFN (4x3mm) surface-mount package.

Does the ER3105DI have a synchronous rectifier?

Yes, it features a synchronous rectifier.

How many outputs does the ER3105DI have?

It has a single output.
