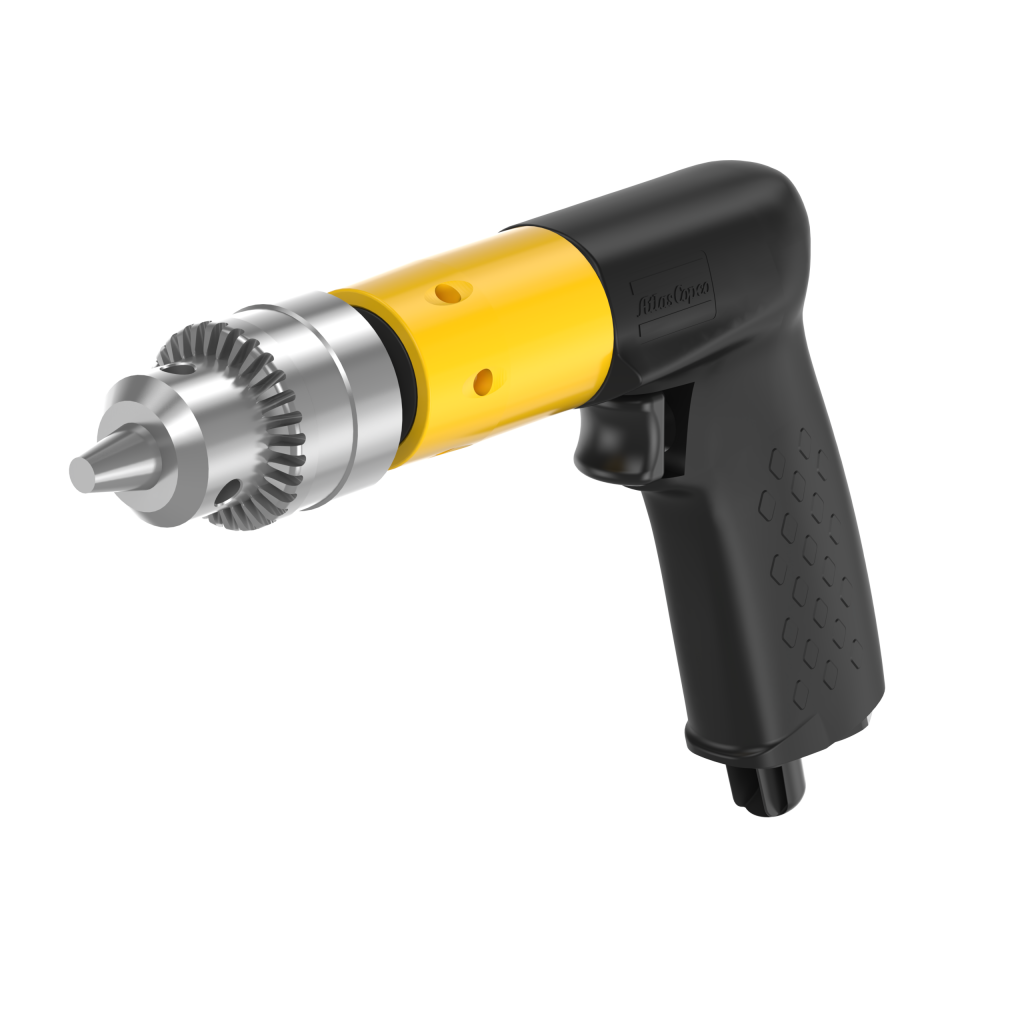

This pistol grip drill, model EPX-005 from QPL, is designed for drilling applications requiring precision and power. It operates with a 380W motor, delivering a free speed of 500 revolutions per minute.
The drill features a chuck with a capacity range from a minimum of 0.8 mm to a maximum of 10 mm, suitable for a variety of drill bits. The thread size for the chuck is UNF 3/8" – 24.
In terms of air information, the tool consumes 17 cfm or 8 l/s at free speed and operates with a maximum working pressure of 7 bar (100 psig). The air inlet thread is 1/4 inch, and a recommended hose size of 1/4 inch or 6.3 mm should be used.
Mechanical specifications include a length of 206 mm (8.11 inches), a front length of 47 mm (1.85 inches), a height of 131 mm (5.16 inches), and a diameter of 34 mm. The drill weighs 0.7 kg.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The QPL EPX-005 drill has a power rating of 380 W.
The free speed of the EPX-005 pistol grip drill is 500 r/min.
The chuck capacity range for the EPX-005 drill is from 0.8 mm to 10 mm.
The thread size for the EPX-005 drill's chuck is UNF 3/8" – 24.
The maximum working pressure for the EPX-005 drill is 7 bar or 100 psig.
The EPX-005 pistol grip drill has a length of 206 mm (8.11 in), a front length of 47 mm (1.85 in), a height of 131 mm (5.16 in), and a diameter of 34 mm.
The QPL EPX-005 drill weighs 0.7 kg.
