| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

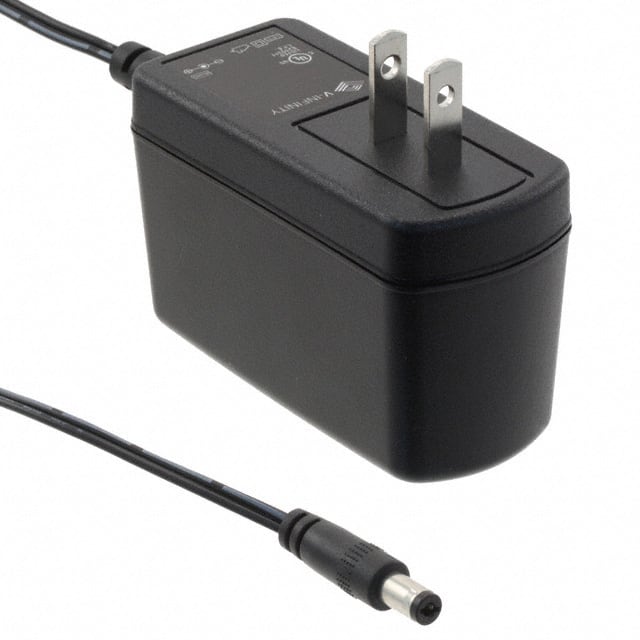

This AC/DC wall mount adapter from CUI Inc., part number EPSA120100U-P6P-EJ, delivers a stable 12Vdc output at a maximum current of 1A, providing a total power of 12W. It features a fixed blade input connector (NEMA 1-15P) suitable for North American regions and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization.
The adapter operates within a universal input voltage range of 90-264 VAC and meets Level V efficiency standards, with a low no-load power consumption of 300mW maximum. Its compact dimensions are 75.0mm L x 35.0mm W x 47.0mm H. The operating temperature range is from 0°C to 40°C, making it suitable for ITE (Commercial) applications.
Designed for wall-mounting (Class II), this adapter is RoHS3 Compliant and has an MSL rating of 1 Unlimited. The cord length is 72 inches (1.83m).
The EPSA120100U-P6P-EJ provides a 12Vdc output voltage at a maximum current of 1A.
This AC/DC adapter has a power rating of 12W.
The input voltage range for this adapter is 90-264 VAC.
The operating temperature range is 0°C to 40°C.
It features a Barrel Plug output connector, measuring 2.5mm I.D. x 5.5mm O.D. x 9.5mm.
The dimensions are 75.0mm L x 35.0mm W x 47.0mm H.
The RoHS Status is RoHS3 Compliant.
