| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Weight | |
| Width |

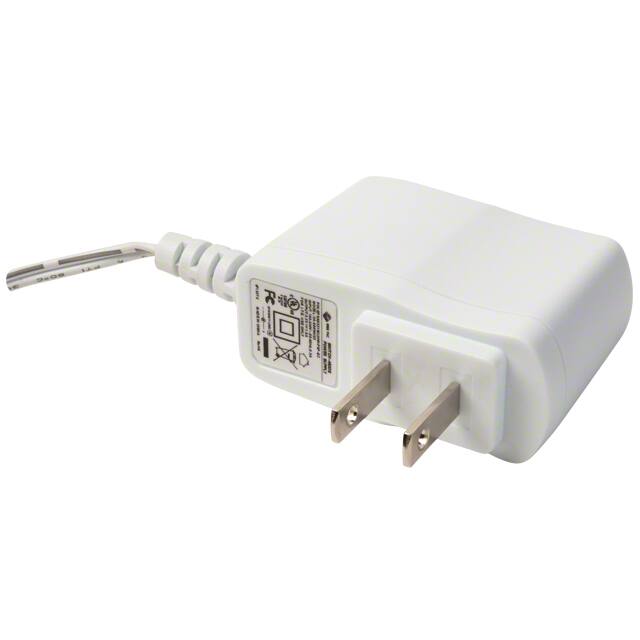

This CUI Inc. EPSA series power supply is a 6W AC-DC wall mount adapter designed for ITE applications. It provides a regulated 12Vdc output at 500mA. The unit features a universal input voltage range of 90-264 Vac and meets Level V efficiency requirements.
Key electrical specifications include ±3% line regulation and ±5% load regulation. Protections include over voltage and short circuit with auto-restart. The adapter has an isolation voltage of 3,000 Vac and an isolation resistance of 100 MΩ.
Mechanically, it is a wall mount form factor with a fixed NEMA 1-15P input connector and a 2.1mm x 5.5mm barrel plug output connector. The cord length is approximately 1.53 meters. The operating temperature range is 0°C to 40°C.
The output voltage is 12 Vdc.
The maximum output current is 500mA.
The total power output is 6 W.
The input voltage range is 90 to 264 Vac.
The operating temperature range is 0°C to 40°C.
It uses a Barrel Plug with dimensions 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
Yes, it features output shut down and auto restart for short circuit protection.
