| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width |

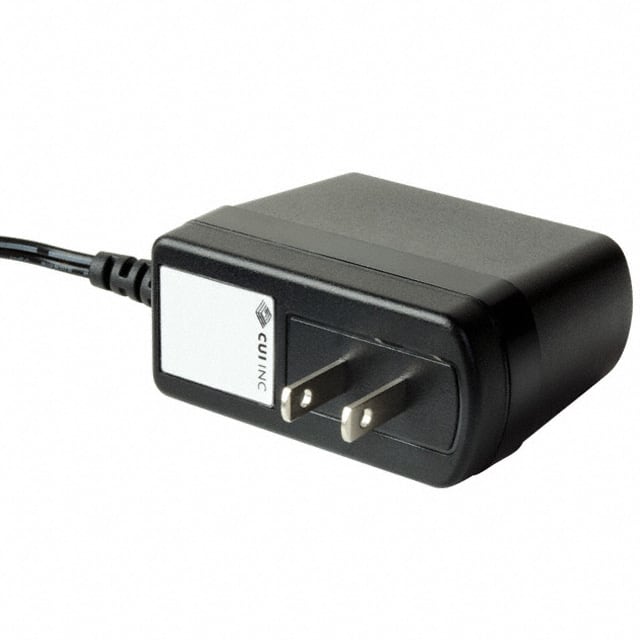

The CUI Inc. EPSA050400U-P5P-EJ is a 20W AC-DC power supply designed for ITE (Commercial) applications. It provides a single regulated 5V output with a maximum current of 4A and a maximum power of 20W. The unit accepts a universal input voltage range of 90-264 Vac and operates at a frequency of 47-63 Hz.
Key features include over-voltage, over-current, and short-circuit protections, ensuring reliable operation. The power supply meets Level V efficiency standards and carries UL/cUL safety approvals. Its dimensions are 75 x 35 x 62 mm, and it features a fixed blade input connector suitable for North America.
The output connector is a Barrel Plug with a 2.1mm I.D. x 5.5mm O.D. x 9.5mm size and positive center polarization. The cord length is 1.50m (59"). The operating temperature range is 0°C to 40°C, with a storage temperature range of -25°C to 85°C. The MTBF is rated at 300,000 hours.
The output voltage is 5 Vdc (maximum).
The operating temperature range is 0°C to 40°C.
The dimensions are 75 x 35 x 62 mm.
Safety approvals include UL/cUL and LPS.
The input voltage range is 90 to 264 Vac.
Yes, the output terminal is protected against short circuits.
The output connector is a barrel plug with 2.1mm I.D. x 5.5mm O.D. x 9.5mm, positive center.
