| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width |

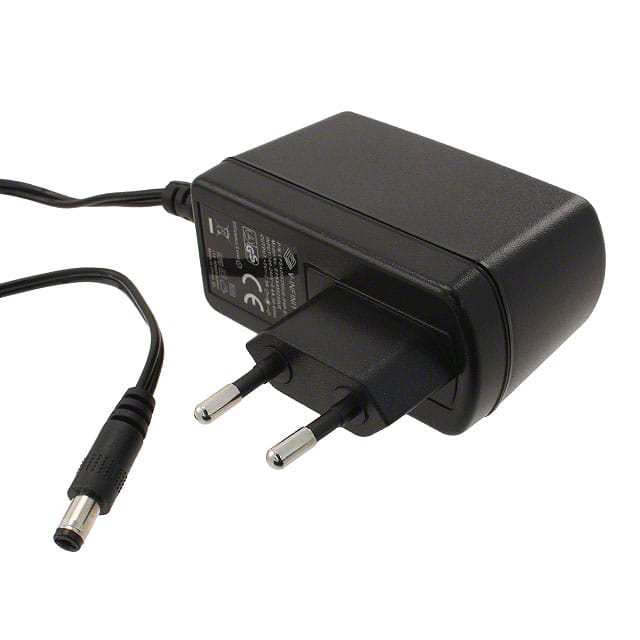

This AC/DC wall mount adapter from CUI Inc., model EPSA050250UE-P5P-EJ, provides a regulated 5V DC output at a maximum current of 2.5A, for a total output power of 13W. It is designed for ITE (Commercial) applications and operates with a universal input voltage range of 90-264 Vac.
The adapter meets Level V efficiency standards and includes protections for over voltage, over current, and short circuit. Its fixed European input plug and barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) make it suitable for use in Europe.
With dimensions of 75.0mm x 50.0mm x 47.0mm, it is a compact solution for power delivery. The adapter also features TUV safety approvals and complies with EN 60950-1 and CE standards.
The EPSA050250UE-P5P-EJ adapter provides a 5V DC output voltage at a maximum current of 2.5A.
The adapter has a maximum output power of 13W.
The adapter accepts a universal input voltage range of 90-264 Vac.
This adapter meets Level V efficiency standards.
The adapter includes over voltage protection, over current protection, and short circuit protection.
The operating temperature range for this power supply is 0°C to 40°C.
