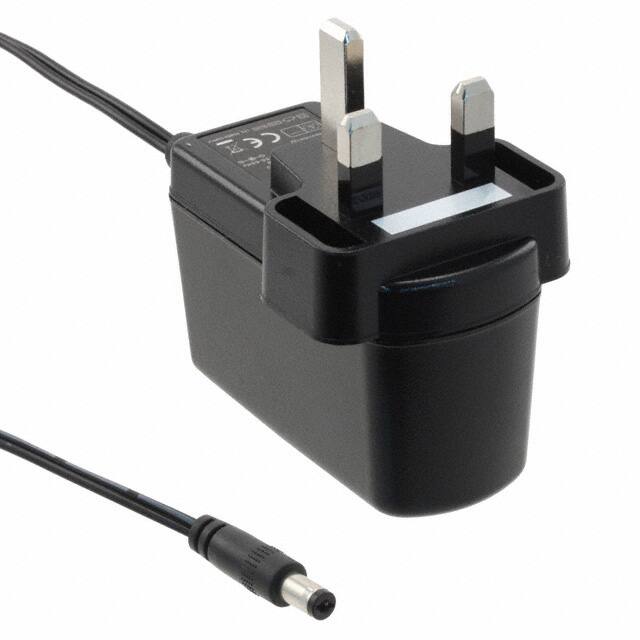

The CUI Inc. EPSA050250UB-P5P-EJ is a 12W AC-DC power supply designed for wall-mounting applications. It offers a single regulated output of 5V at a maximum current of 2.5A, delivering up to 12W of power.
This adapter features a universal input voltage range of 90-264 Vac and operates at a frequency of 47-63 Hz. It is designed with over-voltage, over-current, and short-circuit protections for enhanced safety and reliability. The unit complies with Level V efficiency standards.
The mechanical specifications include dimensions of 75.0mm x 50.0mm x 47.0mm and a fixed UK input plug (BS 1363). The output connector is a standard barrel plug with 2.1mm I.D. x 5.5mm O.D. and positive center polarization. The cord length is 1.50 meters (59 inches).
Safety approvals include CE, cULus, GS, and TUV, with compliance to EN 60950-1. It also meets EMI/EMC standards such as EN 55022 Class B and AS/NZS CISPR 22 Class B.
The EPSA050250UB-P5P-EJ provides a 5Vdc output at a maximum current of 2.5A.
The maximum power output for the EPSA050250UB-P5P-EJ is 12W.
The adapter accepts a universal input voltage range of 90 to 264 Vac.
This power supply features a fixed UK plug (BS 1363).
The operating temperature range is from 0°C to 40°C.
Yes, the RoHS Status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
