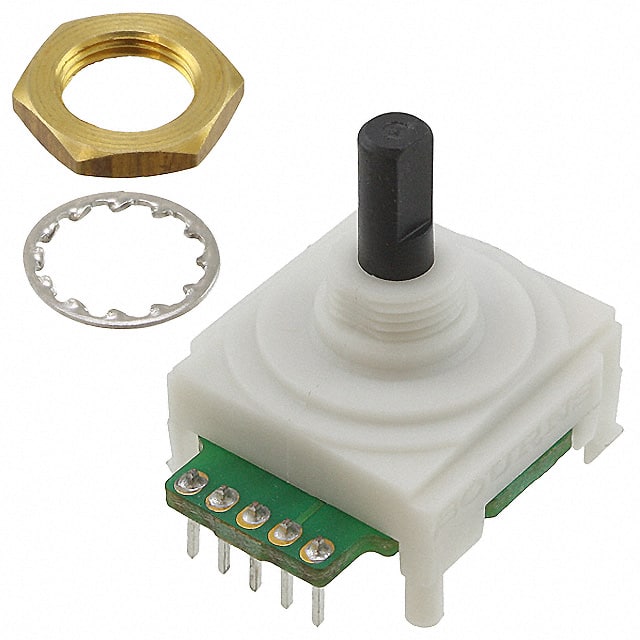

The Bourns EPS1D-F19-AD0024L is a mechanical rotary encoder designed for digital applications, providing a 2-bit quadrature output. It offers 24 pulses per revolution (PPR) and includes a momentary push switch option. This encoder is suitable for through-hole mounting on PCBs and has a vertical orientation.
Key electrical characteristics include a maximum closed circuit resistance of 5 ohms and a minimum open circuit resistance of 500 K ohms. The contact rating is 10mA at 10VDC or 0.1 watt. It boasts a high insulation resistance of 1,000 megohms minimum (500 VDC) and a dielectric withstanding voltage of 1,000 VAC minimum at sea level. The encoder has a rotational life of at least 200,000 cycles.
Environmental specifications include an operating temperature range of +1°C to +85°C and a storage temperature range of -40°C to +85°C. It complies with MIL-STD-202, Method 103B, Condition B for humidity. The part is specified with RoHS3 compliance, MSL 1, and REACH unaffected status, though these are noted as unverified.
This encoder is designed for applications requiring precise rotational feedback and switch functionality. Its sturdy construction and snap-in mounting make it a reliable component for various industrial and electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns EPS1D-F19-AD0024L encoder provides a 2-bit quadrature output.
The EPS1D-F19-AD0024L encoder offers 24 pulses per revolution.
Yes, the Bourns EPS1D-F19-AD0024L features a momentary push switch option.
The operating temperature range for the EPS1D-F19-AD0024L encoder is +1°C to +85°C.
The Bourns EPS1D-F19-AD0024L encoder has a minimum rotational life of 200,000 cycles.
