| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage |

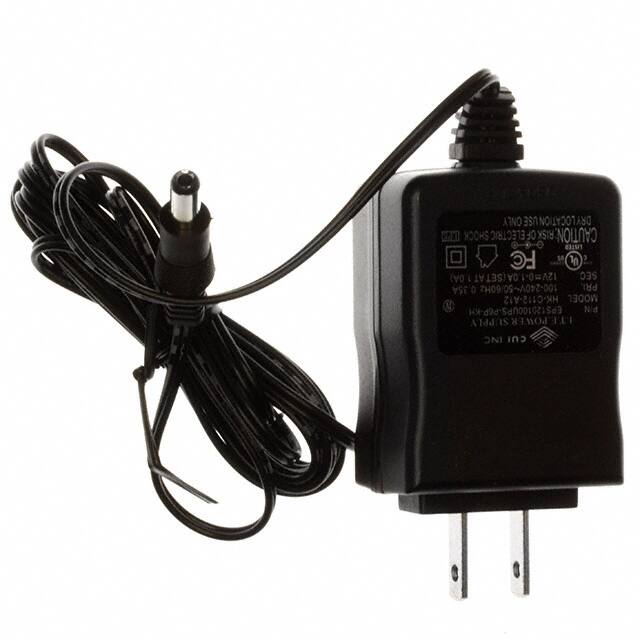

This CUI Inc. EPS120100UPS-P6P-KH is an AC/DC wall mount adapter with a power output of 12W. It delivers a stable 12V output at a maximum current of 1A. Designed for ITE (Commercial) applications, this adapter operates within a universal input voltage range of 90 to 264 VAC.
The adapter features Level IV efficiency and a low no-load power consumption of 500mW maximum. Its form factor is a Class II wall mount with a NEMA 1-15P input connector and a 2.5mm I.D. x 5.5mm O.D. x 12.0mm barrel plug output connector. The cord length is 72 inches (1.83m).
With dimensions of 30.0mm x 45.5mm x 61.8mm, it is suitable for various space-constrained environments. The operating temperature range is from 0°C to 40°C. The unit is RoHS3 Compliant and has an MSL rating of 1 Unlimited.
The output is 12V DC at 1A maximum.
It accepts 90-264 VAC input.
The operating temperature range is 0°C to 40°C.
It uses a barrel plug with 2.5mm I.D. x 5.5mm O.D. x 12.0mm dimensions.
It meets Level IV efficiency standards.
It is a wall mount (Class II) adapter.
It is cULus approved.
