| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

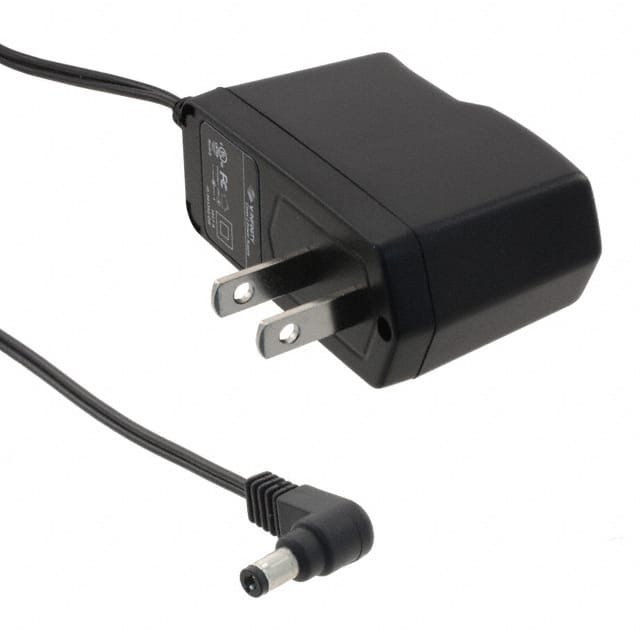

The CUI Inc. EPS120050-P5RP is a versatile AC/DC wall mount adapter, delivering a stable 12VDC output at 6W of power. Designed for ITE (Commercial) applications, this adapter features a 500mA maximum output current and operates with an input voltage range of 100 to 132 VAC.
It boasts Level V efficiency, ensuring optimal power usage and reduced energy consumption. The adapter is housed in a compact wall mount form factor (Class II) with a NEMA 1-15P input connector and a 2.1mm I.D. x 5.5mm O.D. x 12.0mm right-angle barrel plug output connector. The operating temperature range is from 0°C to 40°C, making it suitable for various environments.
Additional specifications include a no-load power consumption of 300mW (Max) and a cord length of 72 inches (1.83m). The polarization is set to positive center. This adapter is compliant with RoHS3 standards and has an MSL rating of 1.
The adapter provides 12VDC at 500mA (6W).
The input voltage range is 100-132 VAC.
The operating temperature range is 0°C to 40°C.
It meets Level V efficiency.
It has a right-angle barrel plug with 2.1mm ID x 5.5mm OD x 12.0mm, positive center polarity.
Yes, it is designed for North America with a NEMA 1-15P input connector and cULus approval.
It is a wall mount (Class II) adapter.
