| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width |

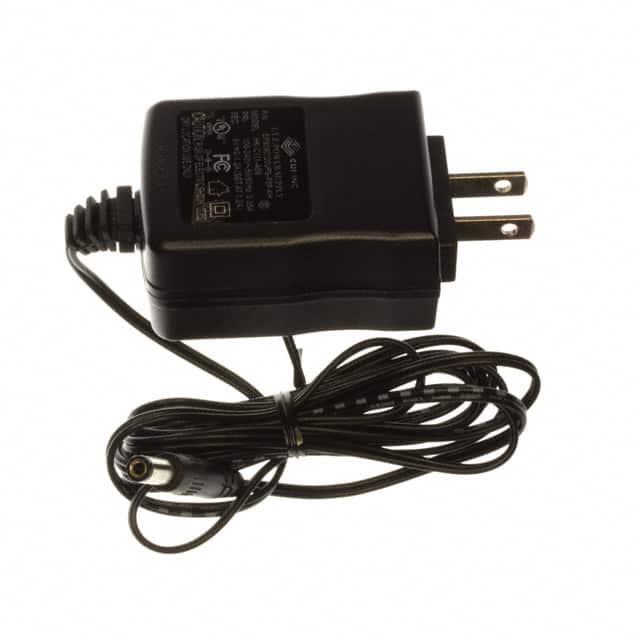

This AC/DC wall mount adapter from CUI Inc., part number EPS090120UPS-P5P-KH, delivers a stable 9V DC output with a maximum current of 1.2A, providing a total power of 11W. It is designed for ITE (Commercial) applications and features a fixed blade input connector (NEMA 1-15P) suitable for North American regions.
The adapter operates within a wide input voltage range of 90V to 264V AC at 50-60 Hz, ensuring global compatibility. It boasts Level IV efficiency, minimizing energy consumption during no-load operation (500mW max). The unit includes essential protections such as over-voltage and short-circuit protection with auto-recovery.
With a compact wall mount (Class II) form factor, it occupies minimal space. The output is delivered via a standard barrel plug (2.1mm I.D. x 5.5mm O.D. x 12.0mm) with positive center polarization. The operating temperature range is 0°C to 40°C, and it has a Mean Time Between Failures (MTBF) of 50,000 hours at 25°C.
The adapter provides a 9V DC output at a maximum current of 1.2A.
This adapter has a power rating of 11W.
The adapter accepts a universal input voltage range of 90V to 264V AC.
The adapter can operate within a temperature range of 0°C to 40°C.
It uses a NEMA 1-15P input connector.
The output connector is a Barrel Plug with a 2.1mm I.D. x 5.5mm O.D. x 12.0mm size.
Yes, it meets Energy Star / CEC Level IV efficiency standards.
