| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Failure Rate | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

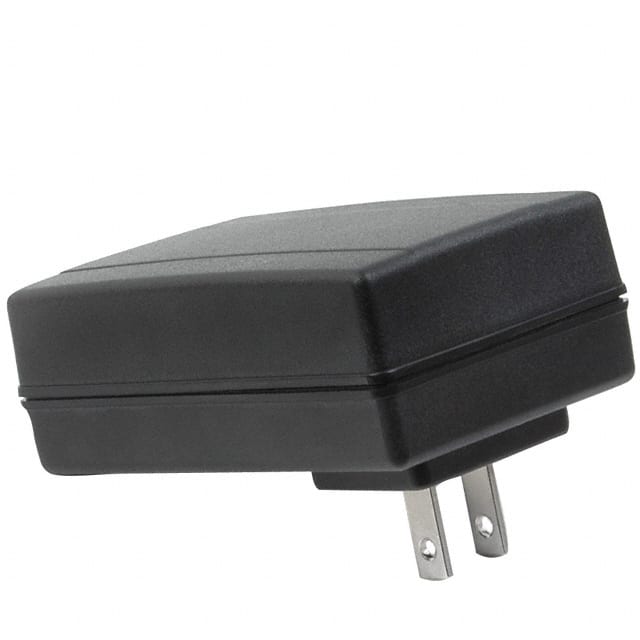

This CUI Inc. EPS060350U-P5P-KH is an AC/DC wall mount adapter designed for commercial ITE applications. It provides a stable 6V output voltage with a maximum current of 3.5A, delivering a total power of 21W.
The adapter operates with an input voltage range of 90 to 264 VAC and achieves Level IV efficiency. It features a NEMA 1-15P input connector and a barrel plug output (2.1mm I.D. x 5.5mm O.D. x 12.0mm) with positive center polarization. The unit is designed for wall mounting and has a cord length of 72 inches (1.83m).
Operating within a temperature range of 0°C to 40°C, this adapter has a low no-load power consumption of 500mW maximum. Its dimensions are 3.39" L x 2.20" W x 1.28" H (86.0mm x 56.0mm x 32.5mm).
Compliance is indicated by CE, cULus, and TUVgs agency approvals. The RoHS status is listed as RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is Unaffected.
6V DC.
Box package, wall mount mounting.
0°C to 40°C.
90 to 264 VAC.
3.5A.
Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm, positive center.
Level IV.
