| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Storage Temperature | |
| Voltage |

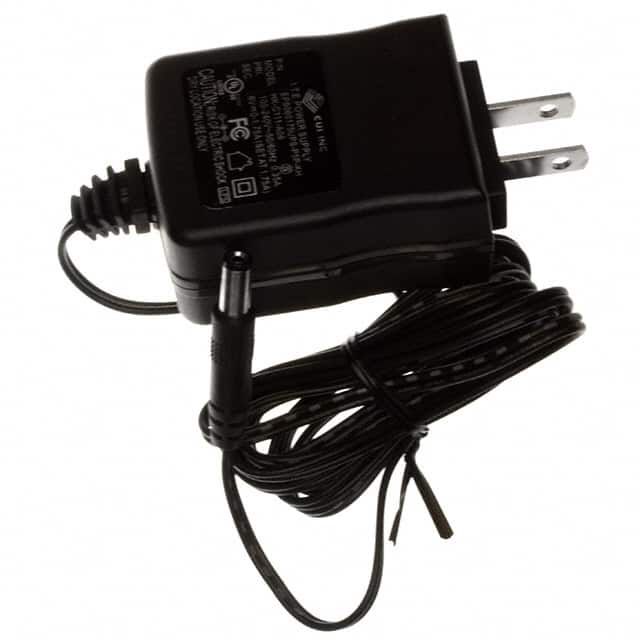

This AC/DC switching adapter from CUI Inc., part number EPS060175UPS-P5P-KH, is designed for ITE (Commercial) applications. It operates with a universal input voltage range of 90-264V AC and a frequency range of 47-63 Hz, suitable for North American regions with its NEMA 1-15P input connector.
The adapter delivers a stable 6V DC output at a maximum current of 1.75A, providing up to 11W of power. Key electrical specifications include line regulation of ±2% max. and load regulation of ±5% max. It also features over-voltage protection set at 9.1V ±1V and auto-recovery short circuit protection.
Designed for convenience, this wall mount adapter has a compact form factor with dimensions of 30.0mm x 45.5mm x 61.8mm. It utilizes a standard Barrel Plug output connector with a 2.1mm inner diameter and 5.5mm outer diameter, and a cord length of 1.80m. The operating temperature range is 0°C to 40°C, with a storage temperature range of -20°C to 70°C.
Safety and compliance are met with UL60950-1 and CAN/CSA-C22.2 No.950-95 approvals, and it adheres to FCC Part 15 Class B for EMI standards. The unit is RoHS3 compliant and has an MSL rating of 1.
The input voltage range is 90V to 264V AC.
The output is 6V DC at 1.75A.
0°C to 40°C.
It is approved to UL60950-1, CAN/CSA-C22.2 No.950-95, and complies with FCC Part 15 Class B.
Level IV.
Barrel plug, 2.1mm inner diameter, 5.5mm outer diameter, 12.0mm length, with positive center polarity.
Yes, over voltage protection is set at 9.1V ±1V and short circuit protection features auto recovery.
