| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage |

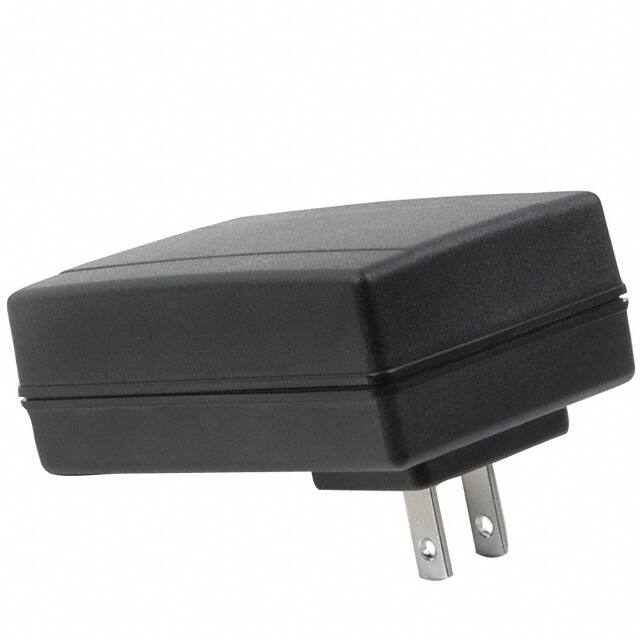

The CUI Inc. EPS050400U-P5P-KH is a 20W AC/DC wall mount adapter designed for ITE (Commercial) applications. It provides a regulated 5V DC output at a maximum current of 4A. The adapter features universal AC input, accepting a voltage range of 90-264V ac at 50-60Hz.
Key electrical specifications include line regulation of ±2% and load regulation of ±5%. It offers overload and short circuit protection with auto-recovery. The unit meets EISA and efficiency Level IV regulations, with a no-load power consumption of 0.5W.
Mechanically, the adapter has a compact wall mount form factor (Class II) with a NEMA 1-15P input connector and a 2.1mm I.D. x 5.5mm O.D. x 12.0mm barrel plug output connector. The cord length is 72 inches (1.83m).
Environmental specifications include an operating temperature range of 0°C to 40°C and a storage temperature range of -20°C to 70°C. The MTBF is rated at 50,000 hours at 25°C.
The adapter provides 5V DC at 4A maximum, delivering 20W of power.
The rated input is 100-240V AC, 50-60Hz, with an operational range of 90-264V AC, 47-63Hz.
It meets Level IV efficiency standards with maximum no load power consumption of 75mW.
The operating temperature range is 0°C to 40°C with 10-95% humidity.
Overload and short circuit protection are both auto-recovery.
It is a wall mount (Class II) adapter with a 2.1mm I.D. x 5.5mm O.D. barrel plug, positive center polarity, and a 72-inch input cord with NEMA 1-15P plug.
The dimensions are 86.0mm x 56.0mm x 32.5mm (3.39" x 2.20" x 1.28").
