| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Power Rating | |
| Rated Current | |
| Type | |
| Voltage | |
| Width |

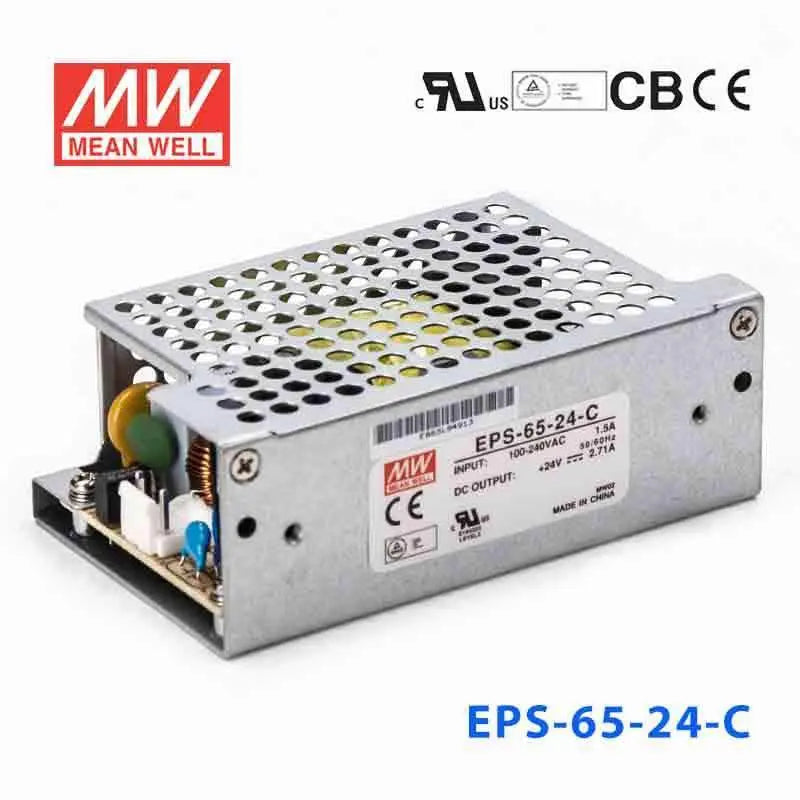

The Mean Well USA EPS-65-24-C is an enclosed AC/DC power supply designed for various applications. It accepts a universal AC input voltage range of 90V to 264V and provides a stable 24V DC output with a rated current of 2.71A, delivering a total power of 65.04W.
Key electrical specifications include high efficiency up to 90%, overload protection ranging from 115% to 160% of rated output power, and over-voltage protection set between 110% and 135%. The unit also features a low no-load power consumption of less than 0.3W and a cold start inrush current of 60A at 230VAC.
Mechanically, the EPS-65-24-C measures 103.4mm in length, 62.0mm in width, and 37.0mm in height, with a chassis mount type. It operates within a temperature range of -30°C to 70°C with derating. Safety standards include UL60950-1 and TUV EN60950-1, with EMC compliance to EN55022 class B and other EN standards. This power supply is suitable for ITE (Commercial) applications and comes with a 3-year warranty.
The input voltage range is 90-264 VAC.
It provides a single output of 24VDC at 2.71A.
The operating temperature is -30°C to 70°C with output derating.
The dimensions are 103.4mm x 62.0mm x 37.0mm (4.07" x 2.44" x 1.46").
The converter is designed for chassis mount installation.
It complies with UL60950-1 and TUV EN60950-1 safety standards.
It includes overload protection (115%-160%) and over voltage protection (110%-135%).
