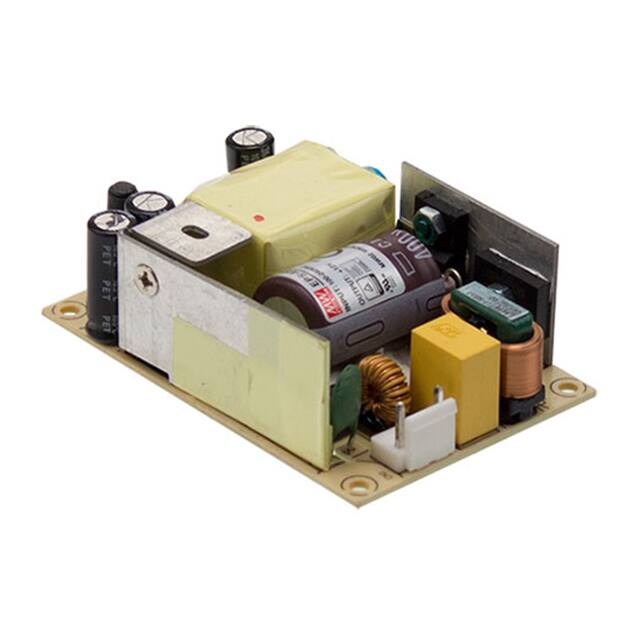

The Mean Well USA EPS-65-24 is a single output open frame AC DC converter designed for commercial ITE applications. It delivers a regulated 24V output at 2.71A with a total power rating of 65W. The converter achieves 88% typical efficiency.
The unit features an adjustable output and accepts universal input. It is chassis mountable with dimensions of 101.6mm x 50.8mm x 29.0mm (4.00" x 2.00" x 1.14"). The operating temperature range is -30°C to 70°C with derating, and input-to-output isolation is rated at 3 kV.
Approval agency certifications include CB, CE, cURus, and TUV. This converter is suitable for powering industrial and commercial equipment requiring a stable 24V supply.
The output voltage is 24V DC.
The power rating is 65W.
The efficiency is 88%.
The operating temperature range is -30°C to 70°C with derating.
RoHS3 compliance is claimed but unverified.
It holds CB, CE, cURus, and TUV approvals.
It is an open frame module designed for chassis mount.
