| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

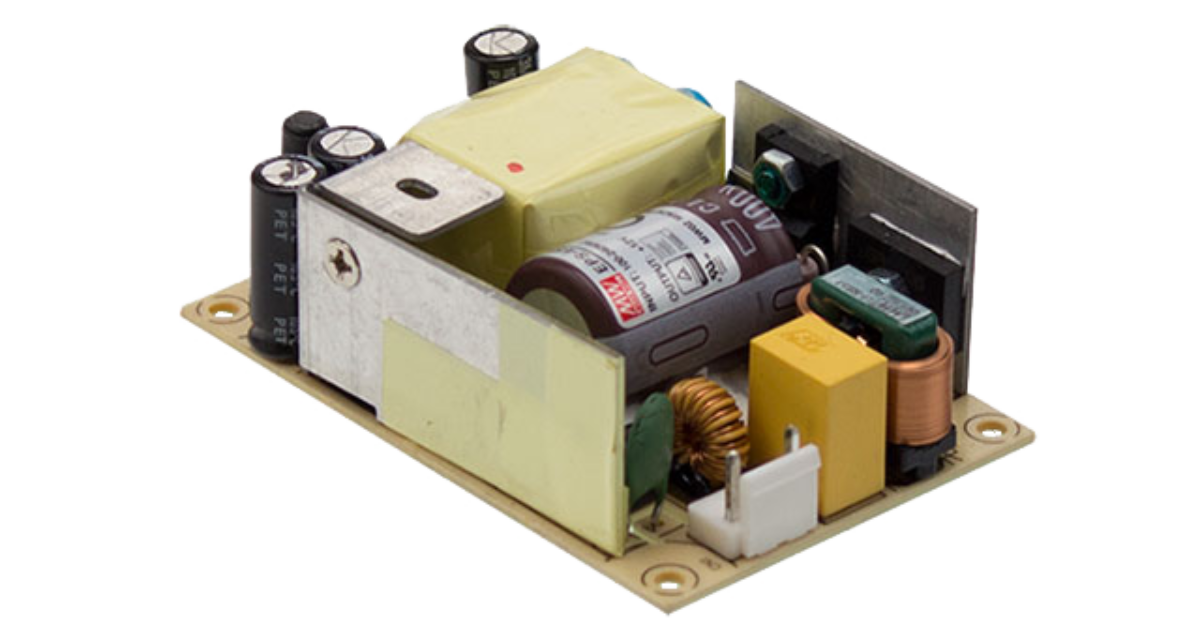

The Mean Well USA EPS-65-12-C is an open-frame AC/DC power supply designed for various ITE (Commercial) applications. It delivers a continuous output power of 65W with a nominal output voltage of 12V and a maximum output current of 5.42A.
This converter operates with a universal AC input range of 90-264VAC and boasts a high efficiency of up to 90%, with a typical efficiency of 86%. It features adjustable output voltage with a ±10% tolerance and provides 3kV isolation voltage. The operating temperature range is -30°C to 70°C with derating.
Measuring 103.4mm x 62.0mm x 37.0mm, the EPS-65-12-C is designed for chassis mounting and comes in an enclosed case. It includes features like adjustable output and universal input, with cooling provided by free air convection. An LED indicator signals power on, and the unit comes with a 3-year warranty. Safety standards include UL60950-1 and TUV EN60950-1, with EMC compliance meeting EN55022 class B and various EN61000 standards.
The Mean Well EPS-65-12-C has a nominal output voltage of 12V.
The maximum output current for the EPS-65-12-C is 5.42A.
The Mean Well EPS-65-12-C has a power rating of 65W.
The EPS-65-12-C accepts a universal AC input voltage range of 90-264VAC.
The operating temperature range for the EPS-65-12-C is -30°C to 70°C with derating.
The dimensions of the Mean Well EPS-65-12-C are 103.4mm x 62.0mm x 37.0mm.
The EPS-65-12-C complies with UL60950-1 and TUV EN60950-1 safety standards.
