| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Form Factor | |
| Height | |
| Isolation Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

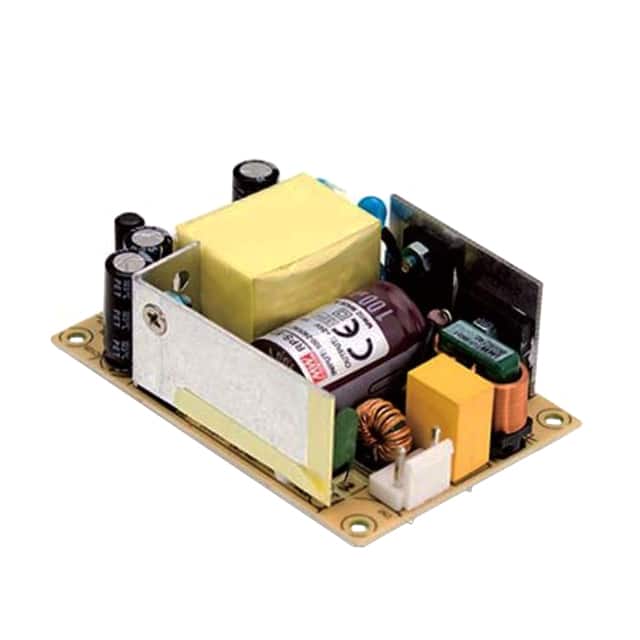

The Mean Well EPS-45S-12 is a 46W single output AC-DC converter from the EPS-45S series. It delivers a nominal 12V output at 3.8A with typical efficiency of 88%. The converter accepts universal AC input from 80 to 264VAC at 47-63Hz and features extremely low no-load power consumption below 0.1W.
Protection features include short circuit, overload, and over voltage protection. The unit is designed for Class II installations without functional ground. It operates over a wide temperature range of -30°C to 70°C with derating, and cooling is by free air convection.
The open frame form factor is chassis mountable with dimensions of 76.2mm x 50.8mm x 24.0mm (3.00" x 2.00" x 0.94") and weighs 0.11kg. It is suitable for ITE (commercial) and industrial electronic equipment applications.
The output voltage is 12V DC nominal.
The input voltage range is 80-264VAC.
The operating temperature range is -30°C to 70°C with derating.
It is listed as RoHS3 Compliant, but this is unverified.
It is an open frame chassis mount design.
Short circuit, overload, and over voltage protection.
Typical efficiency is 88%.
