| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Wattage | |
| Width |

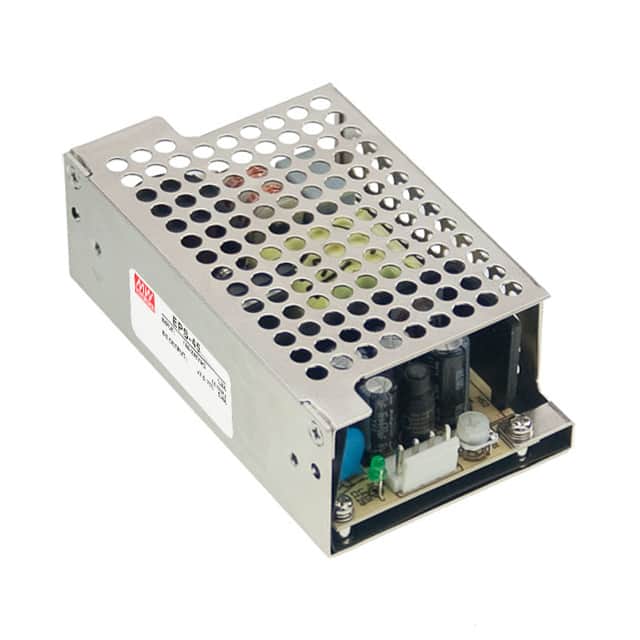

The Mean Well EPS-45-7.5-C is an open-frame AC DC converter designed for ITE (Commercial) applications. It delivers a stable 7.5V output at up to 5.4A, providing a total of 41W of power.
This converter boasts a high efficiency of 84% and features a universal AC input range of 90-264VAC. It includes protections such as short circuit, overload, and over voltage. The unit operates within a wide temperature range of -30°C to +70°C with derating.
Designed for easy integration, the EPS-45-7.5-C has a compact chassis mount form factor with dimensions of 101.6 x 50.8 x 29 mm. It also features adjustable output voltage within +/- 10% of the rated output and a low no-load power consumption of less than 0.3W.
Compliance includes UL60950-1 and TUV EN60950-1 safety standards, along with EMC standards EN55022 Class B and various EN61000 series certifications. The product is RoHS3 Compliant, REACH Unaffected, and has an MSL of 1.
The output voltage is 7.5V.
The maximum output current is 5.4A.
The power rating is 41W.
The input voltage range is 90-264VAC.
The operating temperature range is -30°C to +70°C.
The dimensions are 101.6 x 50.8 x 29 mm.
It meets UL60950-1 and TUV EN60950-1 safety standards.
