| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Current - Output 1 | |
| Efficiency | |
| Features | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Isolation | |
| Width |

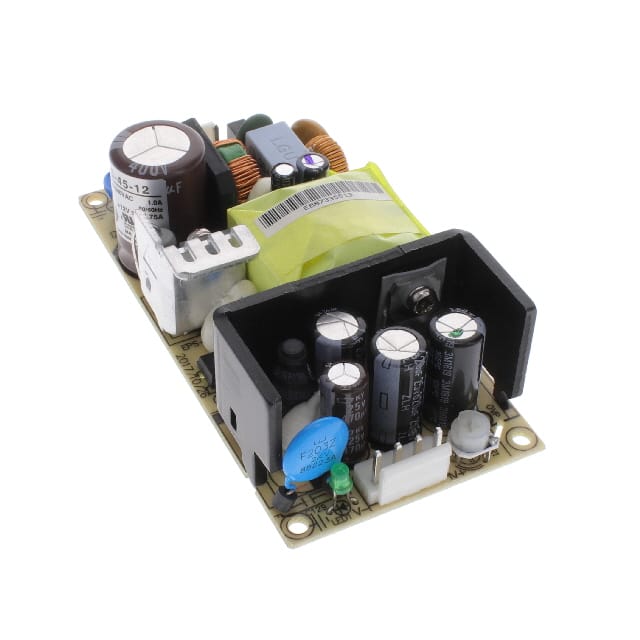

The Mean Well USA EPS-45-12 is an open frame AC/DC converter designed for commercial ITE (Information Technology Equipment) applications. It provides a single 12V output at 3.75A for a total power rating of 45W. The converter accepts a universal AC input and features adjustable output voltage.
With an efficiency rating of 87%, the EPS-45-12 minimizes wasted heat and improves reliability in system designs. The unit offers 3 kV input-to-output isolation for safe operation. Its operating temperature range is -30°C to 70°C (with derating), allowing use in a variety of ambient conditions.
The converter is chassis-mountable and comes in an open frame package measuring 101.6mm x 50.8mm x 29.0mm. It holds multiple safety approvals including CB, CE, cURus, and TUV, indicating compliance with recognized standards for commercial electronics.
The EPS-45-12 provides a single output of 12V at 3.75A.
The converter operates from -30°C to 70°C with derating.
It holds CB, CE, cURus, and TUV approvals.
The RoHS status is listed as RoHS3 Compliant but is unverified.
