| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Overload Protection | |
| Package / Case | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

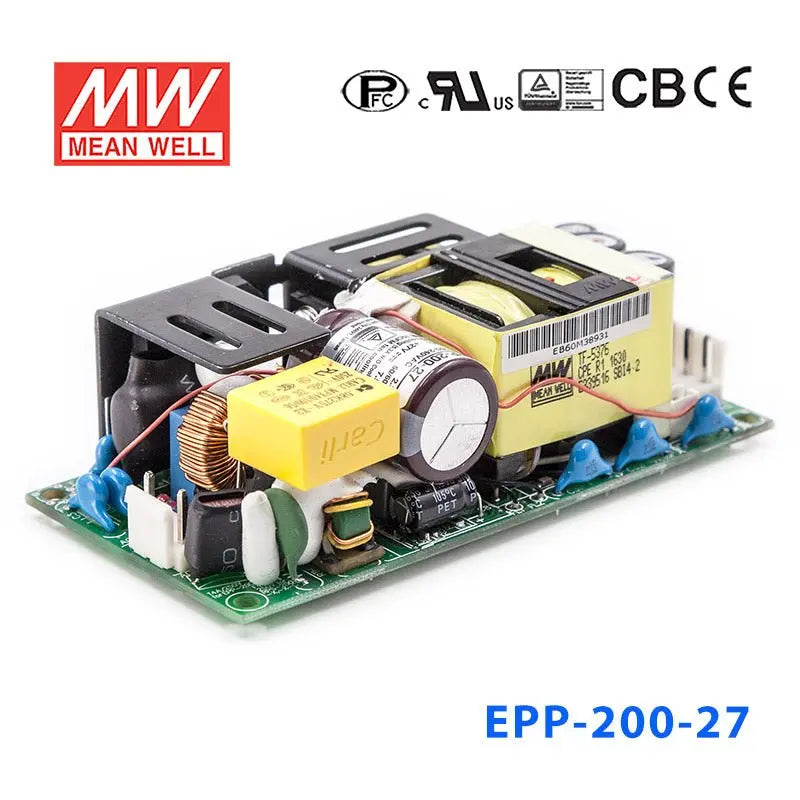

The Mean Well USA EPP-200-27 is a highly reliable 143W AC/DC power supply designed for industrial applications. It features a compact 4"x2" footprint and accepts a universal AC input range of 80-264VAC.
Key electrical specifications include a 27V output voltage, 5.3A rated current, and an efficiency of up to 94%. The unit incorporates built-in active PFC function and offers protection against short circuit, overload, over voltage, and over temperature.
Designed for versatility, the EPP-200-27 can be used for Class I (with FG) and Class II (no FG) system designs. It operates within a wide temperature range of -30°C to 70°C and has an operating altitude of up to 5000 meters. Cooling is achieved through free air convection or 10CFM forced air.
This power supply is suitable for various industrial applications, including automation machinery, control systems, and electronic instruments. It comes with a 3-year warranty.
The output voltage is 27V.
The rated output current is 5.3A.
The rated power is 143W, with 203W available under forced air cooling.
The operating temperature range is -30°C to 70°C.
Yes, it has overload protection ranging from 110% to 140% of the rated output power.
The dimensions are 101.6mm x 50.8mm x 29.0mm (4.00" x 2.00" x 1.14").
