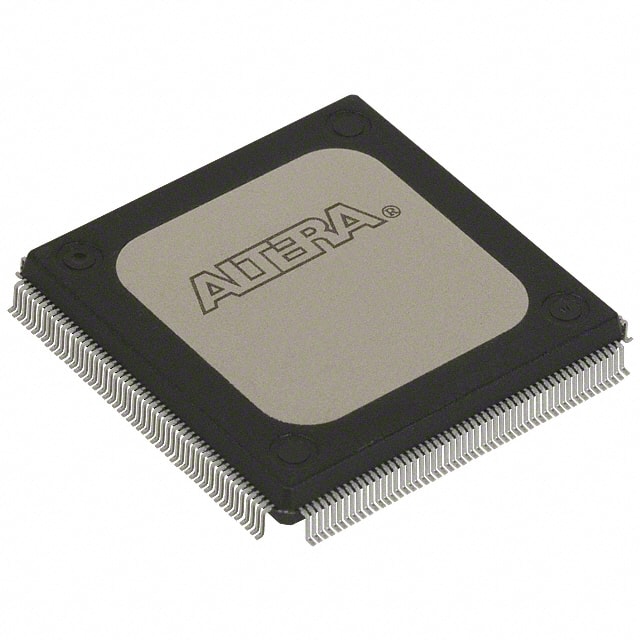

The Intel EPM9560ARC208-10 is a high-performance CMOS EEPROM-based programmable logic device belonging to the MAX 9000A family. Built on a third-generation Multiple Array MatriX (MAX) architecture, this CPLD offers 560 macrocells and 12,000 usable gates, with a maximum pin-to-pin logic delay of 10 ns.
This device supports in-system programmability (ISP) via an IEEE 1149.1 JTAG interface. It features 153 user I/O pins and operates with a supply voltage range of 4.75V to 5.25V. The operating temperature range is 0°C to 70°C (TA).
The EPM9560ARC208-10 is housed in a 208-pin RQFP (28x28) surface-mount package with an exposed pad. Its architecture includes 35 logic array blocks (LABs) and supports MultiVolt I/O for interfacing with 3.3-V and 5.0-V devices. This CPLD is suitable for applications requiring high-speed logic implementation and control functions, logic replacement, and custom interface logic.
Compliance includes RoHS3 status, and it has a Moisture Sensitivity Level (MSL) of 1. The device is designed for reliable operation in industrial environments.
The maximum propagation delay (tpd1) for the EPM9560ARC208-10 is 10 ns.
The EPM9560ARC208-10 features 560 macrocells.
The EPM9560ARC208-10 operates with a voltage supply range of 4.75V to 5.25V.
This device is supplied in a 208-pin RQFP (28x28) package, specifically a 208-BFQFP with an exposed pad.
The operating temperature range for this CPLD is 0°C to 70°C (TA).
