| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,600 pcs
|
9600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Delay Time tpd(1) Max | |
| Industrial Grade | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Gates | |
| Number of I | |
| Number of Logic Elements | |
| Number of Macrocells | |
| Operating Temperature | |
| Programmable Type | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage Supply |

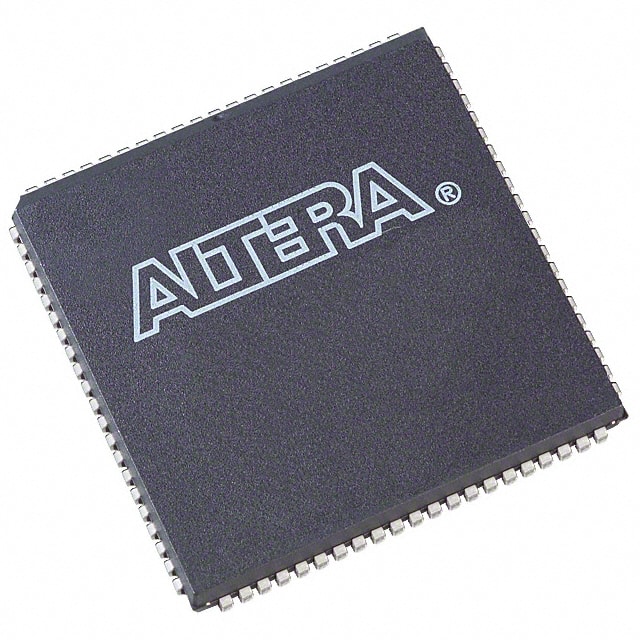

The Intel EPM9320LC84-20 is a high-performance CMOS EEPROM-based programmable logic device belonging to the MAX 9000 family. It offers 6,000 usable gates and 320 macrocells, with a maximum logic delay of 20 ns. This CPLD supports in-system programmability (ISP) via a JTAG interface and operates within a supply voltage range of 4.75V to 5.25V.
Designed for flexibility, the EPM9320LC84-20 features 60 I/O pins and operates at a maximum counter frequency of 144 MHz. It is suitable for applications requiring predictable interconnect delays and programmable output slew-rate control. The device is specified for operation in ambient temperatures from 0°C to 70°C.
This component is available in an 84-PLCC package and is designed for surface mounting. Its architecture is based on Altera's third-generation Multiple Array MatriX (MAX) architecture, providing a robust solution for various embedded logic applications.
The operating voltage for the EPM9320LC84-20 is between 4.75V and 5.25V.
The EPM9320LC84-20 is available in an 84-PLCC package for surface mounting.
The operating temperature range for the EPM9320LC84-20 is 0°C to 70°C.
The RoHS status is RoHS3 Compliant.
The maximum logic delay (tpd) for the EPM9320LC84-20 is 20 ns.
The EPM9320LC84-20 has 320 macrocells.
The EPM9320LC84-20 has 60 I/O pins.
