| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,102 pcs
|
2102 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
520 pcs
|
520 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Number of Gates | |
| Number of I/O | |
| SVHC Present |

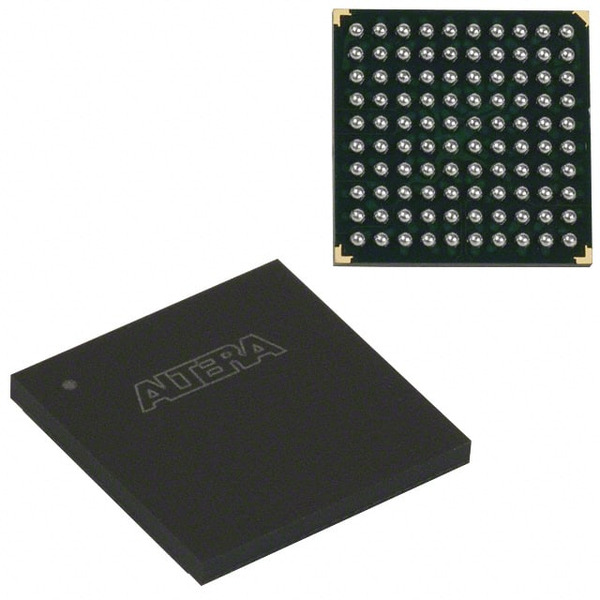

The EPM7256AEFC256-10N from Altera is a Complex Programmable Logic Device (CPLD) belonging to the MAX® 7000A series. This device features 256 macrocells, 16 logic elements/blocks, and supports up to 5000 gates. It offers a fast maximum propagation delay of 5.5 ns, making it suitable for high-speed logic applications.
The CPLD operates with an internal supply voltage between 3V and 3.6V and has 84 I/O pins. It is designed for surface mounting and comes in a 100-FBGA (11x11) package. The operating temperature range is from 0°C to 70°C.
This device is programmable in-system, facilitating easier prototyping and updates. Its specifications make it a candidate for complex digital control, bus interface, and custom logic applications within communication, consumer electronics, and industrial control systems. The obsolete status suggests it is best suited for legacy designs or where supply can be confirmed.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3V to 3.6V.
100-FBGA (11x11) or 100-LBGA, surface mount.
0°C to 70°C.
256 macrocells.
5.5 ns.
84 I/O pins.
16 logic elements/blocks.
