| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Delay Time tpd(1) Max | |
| Lead Spacing | |
| Mounting Type | |
| Number of Gates | |
| Number of I | |
| Number of Logic Elements | |
| Number of Macrocells | |
| Operating Temperature | |
| Programmable Type | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage Supply |

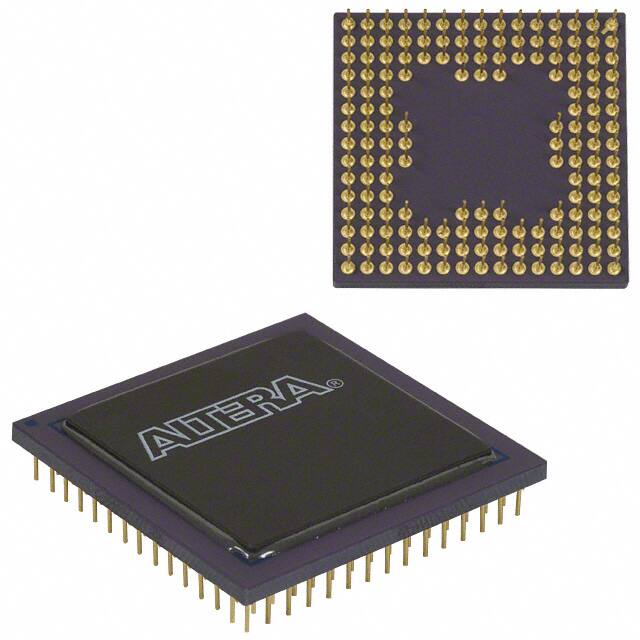

The Intel EPM7192EGI160-20 is a high-performance, EEPROM-based programmable logic device belonging to the MAX 7000 family. It offers 192 macrocells and 3750 usable gates, making it suitable for complex logic designs. This device features a maximum propagation delay of 20 ns and supports a supply voltage range of 4.5V to 5.5V.
Designed for through-hole mounting, the EPM7192EGI160-20 comes in a 160-PGA package. It operates within an ambient temperature range of -40°C to 85°C. The device is classified as RoHS3 Compliant and has an MSL of 1.
This CPLD is part of Altera's second-generation MAX architecture, providing in-system programmability features. Its architecture supports configurable expander product-term distribution and programmable macrocell flip-flops with individual control signals.
The EPM7192EGI160-20 has 192 macrocells.
The maximum propagation delay is 20 ns.
The operating voltage supply range is 4.5V to 5.5V.
The operating temperature range is -40°C to 85°C (TA).
It is a Through Hole mounting type.
The supplier device package is 160-PGA (39.62x39.62).
