| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Delay Time tpd(1) Max | |
| Mounting Type | |
| Number of Gates | |
| Number of I | |
| Number of Logic Elements | |
| Number of Macrocells | |
| Operating Temperature | |
| Programmable Type | |
| Supplier Device Package | |
| Voltage Supply |

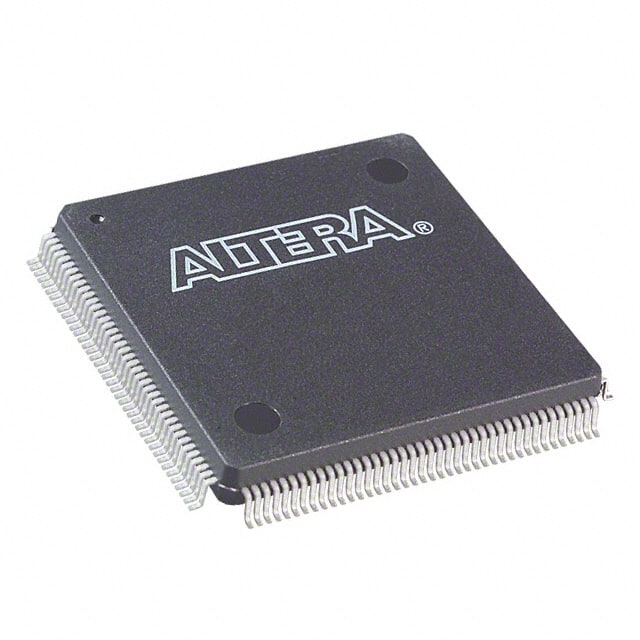

The Intel EPM7160EQC160-20 is a high-performance, EEPROM-based Complex Programmable Logic Device (CPLD) belonging to the MAX 7000 family. This device offers a logic density of 3200 gates and 160 macrocells, making it suitable for various digital design needs.
Key electrical specifications include a maximum propagation delay of 20 ns and a counter frequency of up to 175.4 MHz. It operates within a voltage supply range of 4.75V to 5.25V and a temperature range of 0°C to 70°C.
The EPM7160EQC160-20 is packaged in a 160-pin PQFP (Plastic Quad Flat Pack) with surface mount capabilities. It provides 104 I/O pins for ample connectivity.
This CPLD is designed for applications requiring high-density logic integration and flexibility, such as telecommunications, industrial automation, consumer electronics, and automotive systems.
The operating voltage supply range is 4.75V to 5.25V.
The package is a 160-PQFP (28x28) with surface mount type.
The operating temperature range is 0°C to 70°C (TA).
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
The maximum propagation delay is 20 ns.
The device features 160 macrocells.
