Mfr Part #:

EPM7128SLC84-15N

Mfr Name: Altera

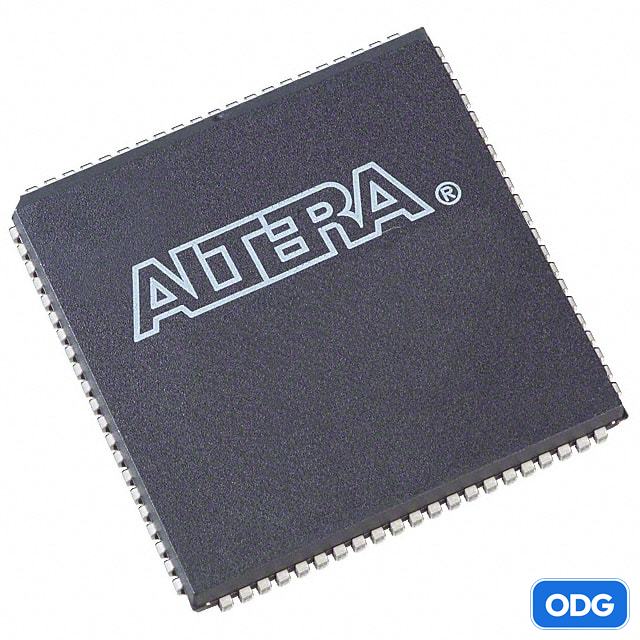

The Altera EPM7128SLC84-15N is a Complex Programmable Logic Device (CPLD) from the MAX 7000S series. It features 128 macrocells and a 6 ns propagation delay.

✓ Total Stock: 2,402 pcs

$ Price Range: $0.50

EPM7128SLC84-15N Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	1,200 pcs On Request	1200 pcs	On Request	1	On Request	On Request	17+	On Request	On Request
PROSOFT ELECTRONICS ✓ Non-Authorised Inventory information	1,200 pcs On Request	1200 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Partservice ✓ Non-Authorised Inventory information	2 pcs On Request	2 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

EPM7128SLC84-15N Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Altera
Failure Rate	MAX® 7000S
Mounting Type	Surface Mount
Number of I/O	68
Operating Temperature	0°C ~ 70°C
Programmable Type	In System Programmable
Voltage	4.75V ~ 5.25V

View Similar Products (0)

EPM7128SLC84-15N Description

Short technical summary and product information.

The Altera EPM7128SLC84-15N is a high-performance, EEPROM-based programmable logic device belonging to the MAX 7000S family. This CPLD offers 128 macrocells and 2500 usable gates, making it suitable for mid-range logic complexity.

Key electrical specifications include a maximum propagation delay of 6 ns and an internal supply voltage range of 4.75V to 5.25V. The device operates within a temperature range of 0°C to 70°C.

Packaged in an 84-pin PLCC (Plastic Leaded Chip Carrier) with surface mount capability, the EPM7128SLC84-15N is designed for efficient board integration. It supports in-system programmability, allowing for easier firmware updates and design modifications.

This CPLD is well-suited for various embedded control and interface logic applications, including digital logic control systems, data communication, networking products, and industrial automation.

EPM7128SLC84-15N Quick Information

Product Type: CPLD

Series: MAX 7000S

Canonical Name: EPM7128SLC84-15N Complex Programmable Logic Device

Subcategory: Complex Programmable Logic Device

EPM7128SLC84-15N Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

EPM7128SLC84-15N Estimated Pricing

Qty	Low	High
1+	$0.50	$0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

EPM7128SLC84-15N Features

128 macrocells for complex logic.
6 ns maximum propagation delay.
5V internal supply voltage.
84-PLCC surface mount package.
In-system programmability supported.

EPM7128SLC84-15N Applications

Digital logic control systems.
Data communication and networking.
Industrial automation equipment.
Consumer electronics interfaces.

EPM7128SLC84-15N FAQs

6 frequently asked questions generated from this part’s specifications.

What is the macrocell count for the EPM7128SLC84-15N?

The EPM7128SLC84-15N has 128 macrocells.

What is the maximum propagation delay of the EPM7128SLC84-15N?

The maximum propagation delay (tpd) for the EPM7128SLC84-15N is 6 ns.

What is the operating voltage for the EPM7128SLC84-15N?

The internal supply voltage for the EPM7128SLC84-15N ranges from 4.75V to 5.25V.

What is the operating temperature range for this CPLD?

The operating temperature range for the EPM7128SLC84-15N is 0°C to 70°C.

What package type is the EPM7128SLC84-15N supplied in?

The EPM7128SLC84-15N is supplied in an 84-PLCC package.

Does the EPM7128SLC84-15N support in-system programmability?

Yes, the EPM7128SLC84-15N supports in-system programmability.
