Mfr Part #:

EPM7128EQC160-15

Mfr Name: Altera

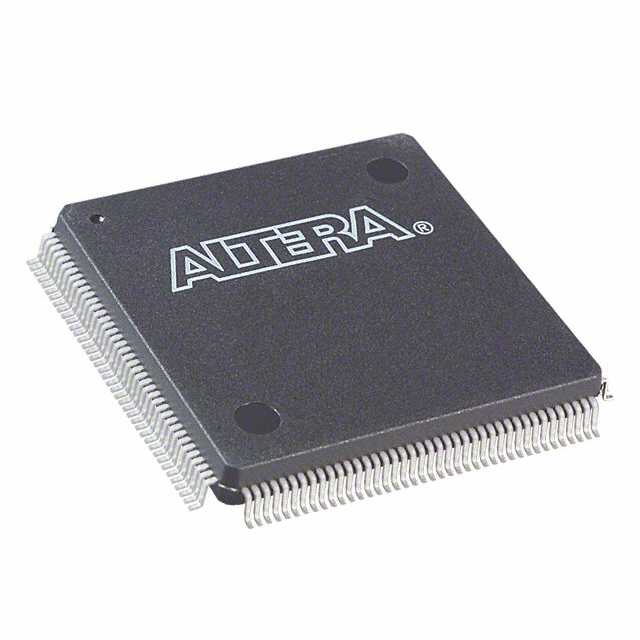

The EPM7128EQC160-15 is a 128-macrocell CPLD from Altera's MAX 7000 series. It offers 100 I/O pins, a maximum propagation delay of 15 ns, and operates on a 4.75V to 5.25V supply within a 160-BQFP surface mount package.

✓ Total Stock: 1,326 pcs

$ Price Range: $0.50

EPM7128EQC160-15 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	1,258 pcs On Request	1258 pcs	On Request	1	On Request	On Request	02+	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	68 pcs On Request	68 pcs	On Request	1	On Request	On Request	02+	On Request	On Request

EPM7128EQC160-15 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Altera
Failure Rate	MAX 7000
Lead Style	Gull Wing
Mounting Type	Surface Mount
Operating Temperature Range	0°C to 70°C
Programmable Type	EE PLD

View Similar Products (0)

EPM7128EQC160-15 Description

Short technical summary and product information.

The EPM7128EQC160-15 is a complex programmable logic device (CPLD) belonging to Altera's MAX 7000 family. Designed for embedded applications, this EE PLD provides 128 macrocells organized into 8 logic blocks, delivering up to 2500 usable gates. The device supports 100 general-purpose I/O pins and features a maximum propagation delay of 15 nanoseconds, making it suitable for moderate-speed digital logic implementation. It operates reliably on an internal supply voltage ranging from 4.75V to 5.25V across an industrial temperature range of 0°C to 70°C. Housed in a 160-pin BQFP surface-mount package, the EPM7128EQC160-15 facilitates automated PCB assembly while maintaining robust signal integrity. Engineers can utilize this component for prototyping, legacy system upgrades, and custom logic control circuits where non-volatile configuration and deterministic timing are required.

EPM7128EQC160-15 Quick Information

Product Type: Complex Programmable Logic Device (CPLD)

Series: MAX 7000

Canonical Name: EPM7128EQC160-15

Subcategory: Embedded / Complex Programmable Logic Devices

EPM7128EQC160-15 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

EPM7128EQC160-15 Estimated Pricing

Qty	Low	High
1+	$0.50	$0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

EPM7128EQC160-15 Features

128 macrocells provide flexible logic design capabilities.
Supports up to 100 general-purpose I/O connections.
15 nanosecond propagation delay ensures fast switching speeds.
Standard 4.75V to 5.25V power supply rail operation.
160-pin BQFP package enables reliable surface mounting.

EPM7128EQC160-15 Applications

Replaces discrete glue logic in industrial control panels.
Implements state machines for automotive sensor interfaces.
Provides address decoding for memory expansion modules.
Drives multiplexed displays in consumer electronic devices.
Bridges microcontrollers with peripheral buses effectively.

EPM7128EQC160-15 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the maximum propagation delay of the EPM7128EQC160-15?

The maximum propagation delay is 15 ns.

What is the operating temperature range of this device?

The operating temperature range is 0°C to 70°C.

What package does the EPM7128EQC160-15 come in?

It comes in a 160-BQFP (bumpered quad flat pack) surface mount package.

How many macrocells does the EPM7128EQC160-15 have?

It has 128 macrocells.

What is the supply voltage range for this CPLD?

The internal supply voltage range is 4.75V to 5.25V.
