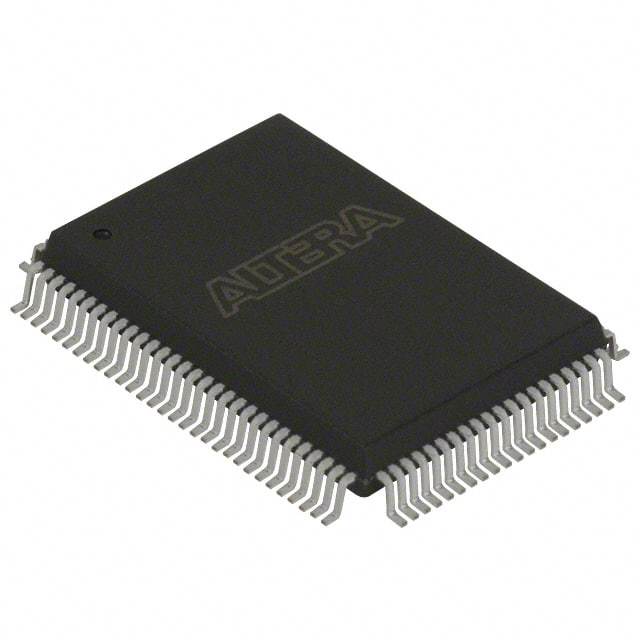

EPM7128EQC100-12 The Intel EPM7128EQC100-12 is a high-performance CPLD with 128 macrocells and a 12ns maximum propagation delay. It features a 2500 gate density and operates within a 4.75V to 5.25V supply range.
Mfr Part #:

EPM7128EQC100-12

Available from 1 distributors
Mfr Name: Intel
Intel
The Intel EPM7128EQC100-12 is a high-performance CPLD with 128 macrocells and a 12ns maximum propagation delay. It features a 2500 gate density and operates within a 4.75V to 5.25V supply range.
✓ Total Stock: 3,125 pcs

EPM7128EQC100-12 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,125 pcs
On Request
3125 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EPM7128EQC100-12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time
Delay Time tpd(1) Max
Failure Rate
Mounting Type
Number of Gates
Number of I
Number of Logic Elements
Number of Macrocells
Operating Temperature
Programmable Type
Supplier Device Package
Tape & Reel
Voltage Supply
View Similar Products (0)

EPM7128EQC100-12 Description

Short technical summary and product information.

The Intel EPM7128EQC100-12 is an EE PLD belonging to the MAX 7000 family, offering 128 macrocells and 2500 usable gates. This device provides a maximum propagation delay of 12 ns and supports up to 84 I/O pins.



Designed for flexibility, it operates with a supply voltage between 4.75V and 5.25V and has an operating temperature range of 0°C to 70°C. The EPM7128EQC100-12 is available in a 100-PQFP package and is designed for surface mounting.



This CPLD is suitable for various digital logic applications requiring programmable logic density and speed. Its features include a counter frequency of up to 175.4 MHz and a pin-to-pin logic delay of 5 ns, making it a capable component for embedded systems.

EPM7128EQC100-12 Quick Information

Product Type: CPLD
Series: EPM7128
Canonical Name: Intel EPM7128EQC100-12 CPLD
Subcategory: Complex Programmable Logic Devices

EPM7128EQC100-12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EPM7128EQC100-12 Features

  • 128 macrocells and 2500 gates.
  • Maximum propagation delay of 12 ns.
  • Operates at 4.75V to 5.25V supply.
  • 100-PQFP surface mount package.
  • Obsolete product status.

EPM7128EQC100-12 Applications

  • Suitable for digital logic applications.
  • Used in embedded systems.
  • Programmable logic density required.
  • High-speed signal processing.

EPM7128EQC100-12 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the EPM7128EQC100-12?

The operating voltage for the EPM7128EQC100-12 is between 4.75V and 5.25V.

What package type is the EPM7128EQC100-12 supplied in?

The EPM7128EQC100-12 is supplied in a 100-PQFP package.

What is the operating temperature range for this CPLD?

The operating temperature range for the EPM7128EQC100-12 is 0°C to 70°C (TA).

What is the RoHS status of the EPM7128EQC100-12?

The RoHS status is RoHS3 Compliant.

How many macrocells does the EPM7128EQC100-12 have?

The EPM7128EQC100-12 has 128 macrocells.

What is the maximum propagation delay for the EPM7128EQC100-12?

The maximum propagation delay for the EPM7128EQC100-12 is 12 ns.

What is the number of gates in the EPM7128EQC100-12?

The EPM7128EQC100-12 has 2500 gates.
