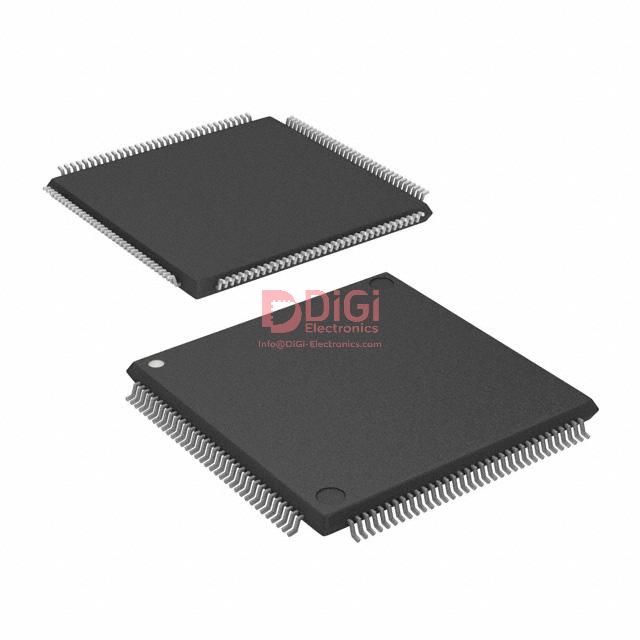

EPM7128AETI144-7 The Altera EPM7128AETI144-7 is a CPLD from the MAX 7000A series. It features 128 macrocells and a 7.5ns propagation delay.
Mfr Part #:

EPM7128AETI144-7

Available from 1 distributors
Mfr Name: Altera
Altera
The Altera EPM7128AETI144-7 is a CPLD from the MAX 7000A series. It features 128 macrocells and a 7.5ns propagation delay.
✓ Total Stock: 3,013 pcs
$ Price Range: $0.50

EPM7128AETI144-7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
3,013 pcs
On Request
3013 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EPM7128AETI144-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Halogen Free
Mounting Type
Number of Gates
Number of I/O
Operating Temperature
Programmable Type
SVHC Present
Supplier Device Package
View Similar Products (0)

EPM7128AETI144-7 Description

Short technical summary and product information.

The Altera EPM7128AETI144-7 is a Complex Programmable Logic Device (CPLD) belonging to the MAX 7000A series. This obsolete part offers 128 macrocells, 8 logic elements/blocks, and 2500 gates, providing significant logic capacity for embedded applications.



Key electrical characteristics include a maximum propagation delay of 7.5 ns and an internal supply voltage range of 3V to 3.6V. It supports up to 100 I/O pins, making it suitable for various interfacing needs. The device operates within a temperature range of -40°C to 85°C (TA).



Designed for in-system programmability, the EPM7128AETI144-7 is housed in a 144-TQFP package and utilizes a surface mount configuration. Its specifications make it a candidate for applications requiring flexible logic implementation and control.



Environmental compliance includes RoHS3 compliance, Moisture Sensitivity Level 1, and REACH unaffected status, though these are noted as low confidence and unverified.

EPM7128AETI144-7 Quick Information

Product Type: CPLD
Series: MAX 7000A
Canonical Name: Altera EPM7128AETI144-7 CPLD
Subcategory: Complex Programmable Logic Devices

EPM7128AETI144-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

EPM7128AETI144-7 Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

EPM7128AETI144-7 Features

  • 128 macrocells for logic implementation.
  • 7.5 ns maximum propagation delay.
  • 3V to 3.6V internal supply voltage.
  • 100 I/O pins for flexible interfacing.
  • Surface mount 144-TQFP package.

EPM7128AETI144-7 Applications

  • Ideal for glue logic and bus bridging.
  • Used in industrial control systems.
  • Suitable for communication protocol interfaces.
  • Applicable in data processing and routing.

EPM7128AETI144-7 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the EPM7128AETI144-7?

The internal supply voltage range is 3V to 3.6V.

What is the operating temperature range of this CPLD?

The operating temperature range is -40°C to 85°C.

What package does the EPM7128AETI144-7 come in?

It is available in a 144-LQFP package with a supplier device package of 144-TQFP (20x20 mm).

How many macrocells does the EPM7128AETI144-7 have?

It has 128 macrocells.

What is the propagation delay of this device?

The maximum propagation delay (tpd1) is 7.5 ns.

Is the EPM7128AETI144-7 programmable?

Yes, it is in-system programmable.
