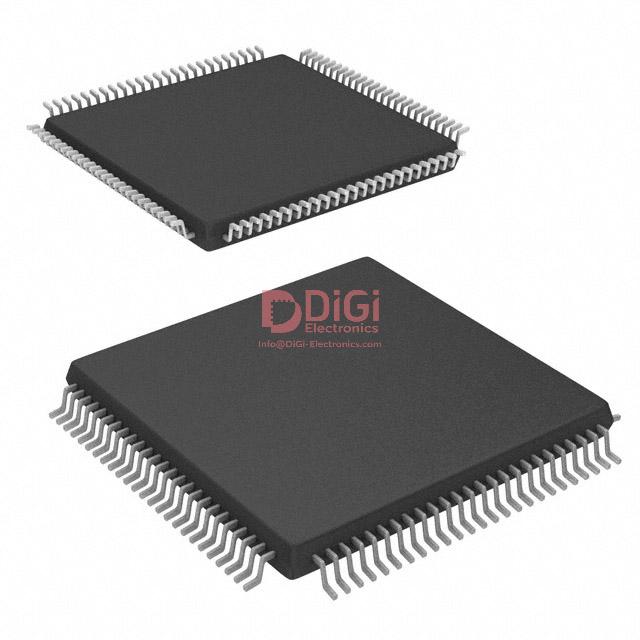

EPM7128AETC100-7N The Intel EPM7128AETC100-7N is a CPLD featuring 128 macrocells and a 7.5 ns maximum propagation delay. It operates with a supply voltage between 3V and 3.6V.
Mfr Part #:

EPM7128AETC100-7N

Available from 1 distributors
Mfr Name: Intel
Intel
The Intel EPM7128AETC100-7N is a CPLD featuring 128 macrocells and a 7.5 ns maximum propagation delay. It operates with a supply voltage between 3V and 3.6V.
✓ Total Stock: 7,121 pcs

EPM7128AETC100-7N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
7,121 pcs
On Request
7121 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EPM7128AETC100-7N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time tpd(1) Max
Lead Spacing
Mounting Type
Number of Gates
Number of I
Number of Logic Elements
Number of Macrocells
Operating Temperature
Programmable Type
Supplier Device Package
Tape & Reel
Voltage Supply
View Similar Products (0)

EPM7128AETC100-7N Description

Short technical summary and product information.

The Intel EPM7128AETC100-7N is a Complex Programmable Logic Device (CPLD) from the MAX 7000A series. It offers 128 macrocells and a maximum propagation delay of 7.5 ns, supporting high-speed digital logic applications.



This device operates within a voltage supply range of 3V to 3.6V. It features 84 I/O pins and 2500 gates, making it suitable for various embedded system designs. The CPLD is in-system programmable, allowing for flexible configuration and updates.



Packaged in a 100-TQFP (14x14) format, the EPM7128AETC100-7N is designed for surface mounting. Its operating temperature range is from 0°C to 70°C (TA), ensuring reliable performance in typical environmental conditions. The device is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1.

EPM7128AETC100-7N Quick Information

Product Type: CPLD
Series: MAX 7000A
Canonical Name: Intel EPM7128AETC100-7N CPLD
Subcategory: CPLD

EPM7128AETC100-7N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EPM7128AETC100-7N Features

  • 128 macrocells for complex logic functions.
  • Fast 7.5 ns maximum propagation delay.
  • Operates from 3V to 3.6V supply voltage.
  • 100-TQFP surface mount package.
  • In-system programmable for flexibility.

EPM7128AETC100-7N Applications

  • Digital logic implementation.
  • Embedded system control.
  • Programmable logic solutions.
  • Interface logic design.

EPM7128AETC100-7N FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum propagation delay for the EPM7128AETC100-7N?

The maximum propagation delay is 7.5 ns.

What is the operating voltage range for this CPLD?

The voltage supply range is 3V to 3.6V.

How many macrocells does the EPM7128AETC100-7N have?

It has 128 macrocells.

What is the operating temperature range?

The operating temperature is 0°C to 70°C (TA).

What package type is the EPM7128AETC100-7N supplied in?

It is supplied in a 100-TQFP package.

Is this CPLD in-system programmable?

Yes, it is in-system programmable.
