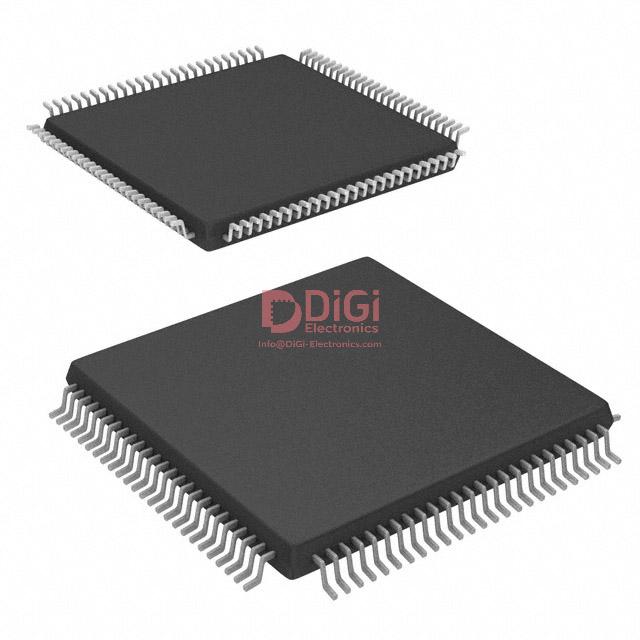

EPM7128AETC100-5 The EPM7128AETC100-5 is a CPLD from Altera featuring 8 logic elements and 84 I/O pins.
Mfr Part #:

EPM7128AETC100-5

Available from 2 distributors
Mfr Name: Altera
Altera
The EPM7128AETC100-5 is a CPLD from Altera featuring 8 logic elements and 84 I/O pins.
✓ Total Stock: 173 pcs
$ Price Range: $0.50

EPM7128AETC100-5 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
124 pcs
On Request
124 pcs On Request 1 On Request On Request 0313+ On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
49 pcs
On Request
49 pcs On Request 1 On Request On Request 2006 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EPM7128AETC100-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time
Mounting Type
Operating Temperature
Storage Temperature
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

EPM7128AETC100-5 Description

Short technical summary and product information.

The Altera EPM7128AETC100-5 is a complex programmable logic device (CPLD) designed for embedded applications. It contains 8 logic elements, 128 macrocells, and 2500 gates. The device supports in-system programmability via a built-in JTAG interface and boundary scan test circuitry. It operates within a voltage range of 3V to 3.6V and a temperature range of 0°C to 70°C. The package type is 100-TQFP, suitable for surface mounting. It features a maximum propagation delay of 5 ns and can operate at counter frequencies up to 227.3 MHz. The device supports hot-socketing and MultiVolt I/O interface, enabling compatibility with various logic levels. It complies with RoHS3 standards, although verification status is low.

EPM7128AETC100-5 Quick Information

Product Type: Programmable Logic Device
Canonical Name: Altera EPM7128AETC100-5 CPLD

EPM7128AETC100-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EPM7128AETC100-5 Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

EPM7128AETC100-5 Features

  • 8 Logic Elements and 128 Macrocells
  • Maximum delay time of 5 ns
  • Supports in-system programming via JTAG
  • Package type is 100-TQFP
  • Operates within 3V to 3.6V voltage range

EPM7128AETC100-5 Applications

  • Embedded system logic implementation
  • High-speed circuit design
  • In-system programmable logic devices
  • Surface mount embedded applications

EPM7128AETC100-5 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the internal supply voltage range for the EPM7128AETC100-5?

The internal supply voltage range is 3V to 3.6V.

What package type does the EPM7128AETC100-5 come in?

The device comes in a 100-TQFP package.

What is the operating temperature range of the EPM7128AETC100-5?

The operating temperature range is 0°C to 70°C.

Is the EPM7128AETC100-5 RoHS compliant?

Yes, it is RoHS3 compliant.
