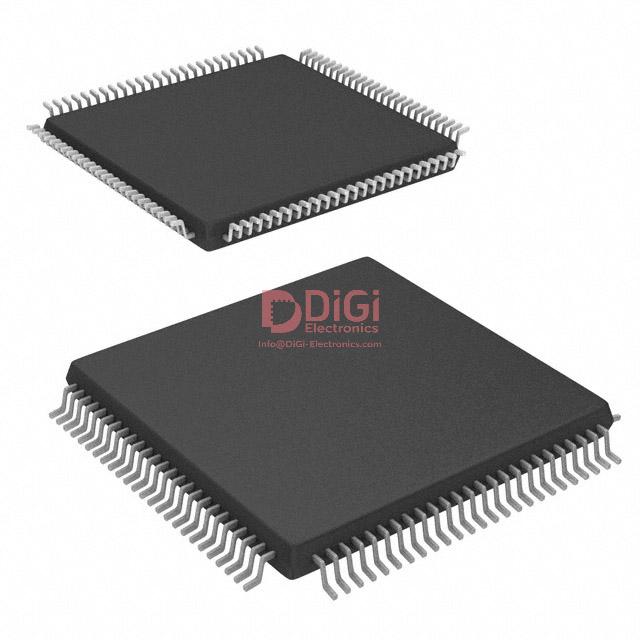

EPM7064STC100-7 The Intel EPM7064STC100-7 is a Complex Programmable Logic Device (CPLD) from the MAX 7000S series. It features 64 macrocells and a maximum propagation delay of 7.5 ns.
Mfr Part #:

EPM7064STC100-7

Available from 2 distributors
Mfr Name: Intel
Intel
The Intel EPM7064STC100-7 is a Complex Programmable Logic Device (CPLD) from the MAX 7000S series. It features 64 macrocells and a maximum propagation delay of 7.5 ns.
✓ Total Stock: 3,947 pcs

EPM7064STC100-7 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,600 pcs
On Request
3600 pcs On Request 1 On Request On Request On Request On Request On Request
Flip Electronics ✓
Non-Authorised Inventory information
347 pcs
On Request
347 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EPM7064STC100-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time tpd(1) Max
Failure Rate
Lead Spacing
Mounting Type
Number of Gates
Number of I
Number of Logic Elements
Number of Macrocells
Operating Temperature
Programmable Type
Supplier Device Package
Tape & Reel
Voltage Supply
View Similar Products (0)

EPM7064STC100-7 Description

Short technical summary and product information.

The Intel EPM7064STC100-7 is a Complex Programmable Logic Device (CPLD) belonging to the MAX 7000S family. This obsolete device offers 64 macrocells and a logic density of 1250 gates, making it suitable for various embedded applications.



Key electrical specifications include a maximum propagation delay of 7.5 ns and an operating voltage range of 4.75V to 5.25V. The device operates within a temperature range of 0°C to 70°C.



Designed for surface mounting, the EPM7064STC100-7 comes in a 100-TQFP package. It supports in-system programmability, offering flexibility during development and deployment. The product status is listed as obsolete.

EPM7064STC100-7 Quick Information

Product Type: CPLD
Series: MAX 7000S
Canonical Name: Intel EPM7064STC100-7 Complex Programmable Logic Device
Subcategory: Complex Programmable Logic Device

EPM7064STC100-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EPM7064STC100-7 Features

  • 64 macrocells for logic implementation.
  • Maximum propagation delay of 7.5 ns.
  • Operates at 5V supply voltage.
  • Surface mountable 100-TQFP package.
  • In-system programmable device.

EPM7064STC100-7 Applications

  • Suitable for programmable logic in embedded systems.
  • Used in digital signal processing applications.
  • Ideal for custom logic implementation in CPLDs.
  • Applicable in industrial automation control systems.
  • Employed in high-speed data communication devices.

EPM7064STC100-7 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the EPM7064STC100-7?

The EPM7064STC100-7 operates at a voltage supply range of 4.75V to 5.25V.

What is the package type for the EPM7064STC100-7?

The EPM7064STC100-7 is supplied in a 100-TQFP package.

What is the operating temperature range of the EPM7064STC100-7?

The operating temperature range for the EPM7064STC100-7 is 0°C to 70°C (TA).

What is the RoHS status of the EPM7064STC100-7?

The RoHS status of the EPM7064STC100-7 is RoHS3 Compliant.
