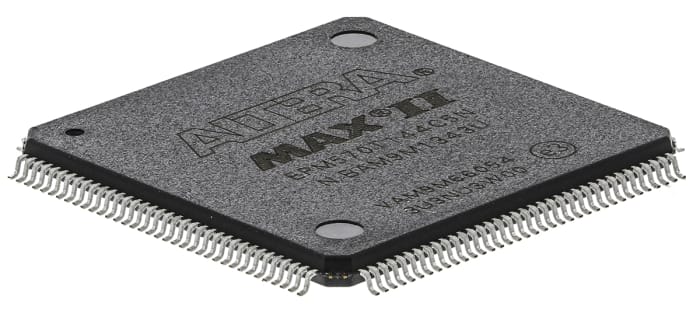

EPM570T144C5N The Altera EPM570T144C5N is a Complex Programmable Logic Device from the MAX II series. It features 440 macro cells and 116 user I/Os.
Mfr Part #:

EPM570T144C5N

Available from 1 distributors
Mfr Name: NA
NA
The Altera EPM570T144C5N is a Complex Programmable Logic Device from the MAX II series. It features 440 macro cells and 116 user I/Os.
✓ Total Stock: 3 pcs
$ Price Range: $0.50

EPM570T144C5N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request 06/07+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EPM570T144C5N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Industrial Grade
Lead Spacing
Lead Style
Length
Tape & Reel
View Similar Products (0)

EPM570T144C5N Description

Short technical summary and product information.

The Altera EPM570T144C5N is a Complex Programmable Logic Device (CPLD) belonging to the MAX II family. This device offers 440 macro cells and supports 116 user I/Os, making it suitable for various digital logic applications.



Key electrical specifications include a maximum propagation delay time of 7.1 ns and a maximum operating frequency of 304 MHz. The device operates within a supply voltage range of 2.375V to 3.6V. It also features individual output enable control and supports in-system programmability and re-programmability.



Packaged in a 144-pin TQFP, the EPM570T144C5N is designed for surface mounting. It has a minimum operating temperature of 0°C and a maximum of 85°C. The dimensions of the package are 1.4mm in height and 20mm in length.



This CPLD is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. It is suitable for applications requiring programmable logic solutions with moderate complexity and performance.

EPM570T144C5N Quick Information

Product Type: Complex Programmable Logic Device
Series: MAX II
Canonical Name: Altera MAX II EPM570T144C5N Complex Programmable Logic Device
Subcategory: Complex Programmable Logic Device

EPM570T144C5N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EPM570T144C5N Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

EPM570T144C5N Features

  • 440 macro cells for logic implementation.
  • 116 user I/O pins available.
  • Fast 7.1 ns propagation delay.
  • Operates from 2.375V to 3.6V.
  • 144-pin TQFP surface mount package.

EPM570T144C5N Applications

  • Digital logic implementation.
  • In-system programmable designs.
  • Embedded system control.
  • Custom logic circuits.

EPM570T144C5N FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the EPM570T144C5N?

The operating voltage range is 2.375 V to 3.6 V.

What is the package type of the EPM570T144C5N?

The device is housed in a 144-pin TQFP package with surface mount mounting.

What is the operating temperature range of the EPM570T144C5N?

The operating temperature range is 0 °C to 85 °C.

How many macro cells does the EPM570T144C5N have?

The EPM570T144C5N has 440 macro cells.

What is the maximum propagation delay of the EPM570T144C5N?

The maximum propagation delay is 7.1 ns.

Is the EPM570T144C5N in-system programmable?

Yes, the device supports in-system programmability.
