EPM570T100C5N
Intel
The Intel EPM570T100C5N is a Complex Programmable Logic Device (CPLD) featuring 570 logic elements and 440 macrocells. It operates at 2.5V/3.3V and has a propagation delay of 5.4 ns.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,200 pcs
|
3200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Delay Time tpd(1) Max | |
| Mounting Type | |
| Number of I | |
| Number of Logic Elements | |
| Number of Macrocells | |
| Operating Temperature | |
| Programmable Type | |
| Supplier Device Package | |
| Voltage Supply |
The Intel EPM570T100C5 is a Complex Programmable Logic Device (CPLD) belonging to the MAX II family. This device offers 570 logic elements and 440 macrocells, making it suitable for various digital logic applications.
Key electrical specifications include a maximum propagation delay of 5.4 ns and support for internal supply voltages of 2.5V and 3.3V. The EPM570T100C5 is designed for in-system programmability.

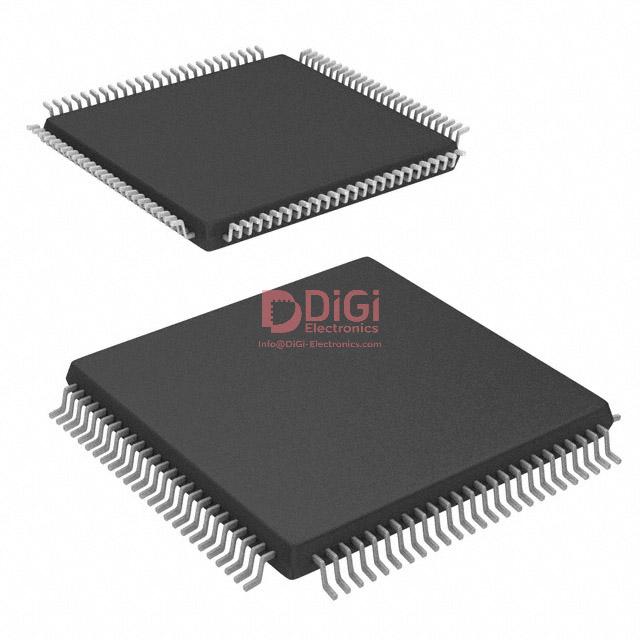

This CPLD is packaged in a 100-TQFP (14x14) format and requires surface mounting. It operates within a temperature range of 0°C to 85°C (TJ). The device provides 76 I/O pins for interfacing with other components.
The EPM570T100C5 is manufactured by Intel and is part of their MAX II series. It is designed for embedded applications requiring flexible logic implementation.
The EPM570T100C5 has 570 logic elements.
The maximum propagation delay is 5.4 ns.
The EPM570T100C5 operates with a supply voltage of 2.5V or 3.3V.
The operating temperature range is 0°C to 85°C (TJ).
The EPM570T100C5 is supplied in a 100-TQFP package.
