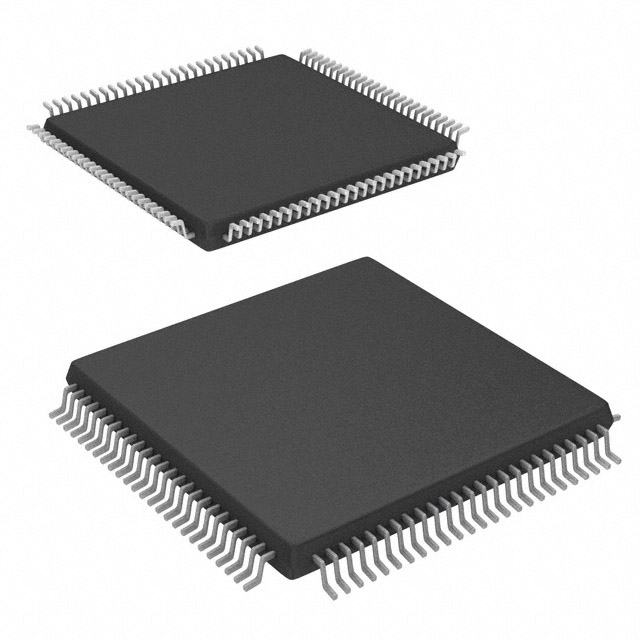

EPM570GT100I5N The Intel EPM570GT100I5N is a Complex Programmable Logic Device (CPLD) from the MAX II series. It features 570 logic elements and operates within an industrial temperature range.
Mfr Part #:

EPM570GT100I5N

Available from 1 distributors
Mfr Name: Intel
Intel
The Intel EPM570GT100I5N is a Complex Programmable Logic Device (CPLD) from the MAX II series. It features 570 logic elements and operates within an industrial temperature range.
✓ Total Stock: 4,500 pcs

EPM570GT100I5N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,500 pcs
On Request
4500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EPM570GT100I5N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time tpd(1) Max
Lead Spacing
Mounting Type
Number of I
Number of Logic Elements
Number of Macrocells
Operating Temperature
Programmable Type
Supplier Device Package
Voltage Supply
View Similar Products (0)

EPM570GT100I5N Description

Short technical summary and product information.

The Intel EPM570GT100I5N is a Complex Programmable Logic Device (CPLD) belonging to the MAX II family. This device offers 570 logic elements and 440 macrocells, with a maximum propagation delay of 5.4 ns. It operates with an internal voltage supply between 1.71V and 1.89V and supports 76 I/O pins.



Designed for in-system programmability, the EPM570GT100I5N is housed in a 100-TQFP package suitable for surface mounting. It operates across an industrial temperature range of -40°C to 100°C (TJ). This CPLD is part of Intel's MAX II series, known for its flexibility and performance in embedded applications.



Key electrical characteristics include its macrocell count, logic element density, and fast propagation delay, making it suitable for various digital logic designs. The surface-mount package and industrial temperature rating ensure reliability in demanding environments.

EPM570GT100I5N Quick Information

Product Type: CPLD
Series: MAX II
Canonical Name: Intel EPM570GT100I5N CPLD
Subcategory: CPLD

EPM570GT100I5N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EPM570GT100I5N Features

  • 570 logic elements and 440 macrocells.
  • Maximum propagation delay of 5.4 ns.
  • Operates at 1.71V to 1.89V supply.
  • Industrial temperature range of -40°C to 100°C.
  • Surface mountable 100-TQFP package.

EPM570GT100I5N Applications

  • Suitable for embedded logic designs.
  • Used in digital signal processing.
  • Ideal for control system applications.
  • Flexible logic implementation.

EPM570GT100I5N FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the EPM570GT100I5N?

The operating temperature range is -40°C to 100°C (TJ).

What package type is the EPM570GT100I5N CPLD supplied in?

The EPM570GT100I5N is supplied in a 100-TQFP package.

What is the maximum propagation delay for this CPLD?

The maximum propagation delay is 5.4 ns.

What is the internal voltage supply range for the EPM570GT100I5N?

The internal voltage supply range is 1.71V to 1.89V.
