Mfr Part #:

EPM570F256C5

Mfr Name: Altera

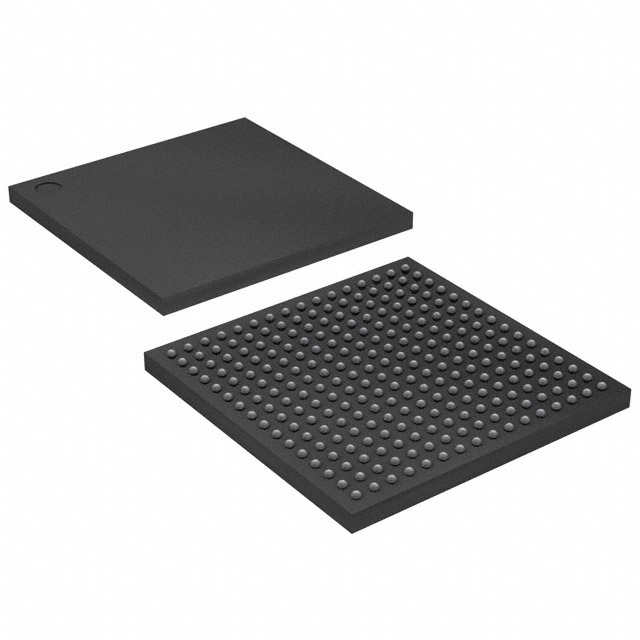

The Intel EPM570F256C5 is a high-performance CPLD from the MAX II series. It offers 440 macrocells and 160 I/O pins for flexible logic solutions.

✓ Total Stock: 3,940 pcs

$ Price Range: $0.50

EPM570F256C5 Available from 4 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	2,640 pcs On Request	2640 pcs	On Request	1	On Request	On Request	07+	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	1,242 pcs On Request	1242 pcs	On Request	1	On Request	On Request	1625+	On Request	On Request
Speed Components Ltd ✓ Non-Authorised Inventory information	33 pcs On Request	33 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Bristol Electronics ✓ Non-Authorised Inventory information	25 pcs On Request	25 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

EPM570F256C5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Altera
Lead Style	Ball
Mounting Type	Surface Mount
Operating Voltage	2.5V / 3.3V
Pitch	1 mm
SVHC Present	Not Present

View Similar Products (0)

EPM570F256C5 Description

Short technical summary and product information.

The Intel EPM570F256C5 is a Complex Programmable Logic Device (CPLD) belonging to the MAX II series. Designed for robust and flexible logic solutions, this CPLD features a high logic capacity with 440 macrocells and 570 logic elements, making it suitable for complex designs.

It supports dual voltage operation at 2.5V and 3.3V, and provides extensive connectivity with 160 I/O pins. The device operates within a temperature range of 0°C to 85°C and offers a maximum propagation delay of 5.4 ns for high-speed performance.

The EPM570F256C5 is packaged in a 256-pin FBGA (Fine Ball Grid Array) with a 1 mm pitch, designed for surface mounting. It is available in tray packaging.

This CPLD is ideal for applications in telecommunications, automotive systems, industrial automation, consumer electronics, and medical devices, where high-density logic and extensive I/O capabilities are required.

EPM570F256C5 Quick Information

Product Type: CPLD

Series: MAX II

Canonical Name: Intel EPM570F256C5 CPLD

Subcategory: CPLD

EPM570F256C5 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

EPM570F256C5 Estimated Pricing

Qty	Low	High
1+	$0.50	$0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

EPM570F256C5 Features

High logic capacity with 440 macrocells.
Supports dual voltage supply at 2.5V and 3.3V.
Features 160 I/O pins for extensive connectivity.
Fast performance with 5.4 ns propagation delay.
Surface mountable FBGA-256 package.

EPM570F256C5 Applications

Ideal for telecommunications equipment.
Used in automotive ADAS systems.
Suitable for industrial automation control.
Applicable in consumer electronics.
Reliable for medical diagnostic devices.

EPM570F256C5 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating voltage of the EPM570F256C5?

The device supports dual voltage operation at 2.5V and 3.3V.

What is the operating temperature range of the EPM570F256C5?

The operating temperature range is 0°C to 85°C.

What is the package type of the EPM570F256C5?

The device is packaged in PBGA256 (256-ball Fine-Pitch Ball Grid Array) with 1 mm pitch, surface mount.

What is the maximum propagation delay of the EPM570F256C5?

The maximum propagation delay (tpd) is 5.4 ns.

How many macrocells does the EPM570F256C5 have?

The device contains 440 macrocells.

How many logic elements does the EPM570F256C5 have?

The device contains 570 logic elements.

How many I/O pins does the EPM570F256C5 have?

The device provides 160 I/O pins.
