BAT54JFILM-HQ
STMicroelectronics
The STMicroelectronics BAT54JFILM-HQ is a Schottky diode array designed for surface mount applications. It offers a 40V reverse voltage and 200mA average rectified current per diode.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,821 pcs
|
4821 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,588 pcs
|
2588 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
1,787 pcs
|
1787 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,108 pcs
|
1108 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
700 pcs
|
700 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
55 pcs
|
55 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type |
The Altera MAX 3000A family, including the EPM3256ATI144-10N, comprises high-performance, low-cost CMOS EEPROM-based programmable logic devices (PLDs). This specific device features 5000 usable gates and 256 macrocells, built on a MAX architecture.
Key electrical specifications include a pin-to-pin logic delay of 7.5 ns and a maximum counter frequency of 126.6 MHz. It supports a MultiVolt I/O interface, allowing the core to run at 3.3 V while I/O pins are compatible with 5.0-V, 3.3-V, and 2.5-V logic levels. Enhanced features include in-system programmability (ISP) via JTAG, boundary-scan test (BST) circuitry, hot-socketing support, and programmable power-saving modes.

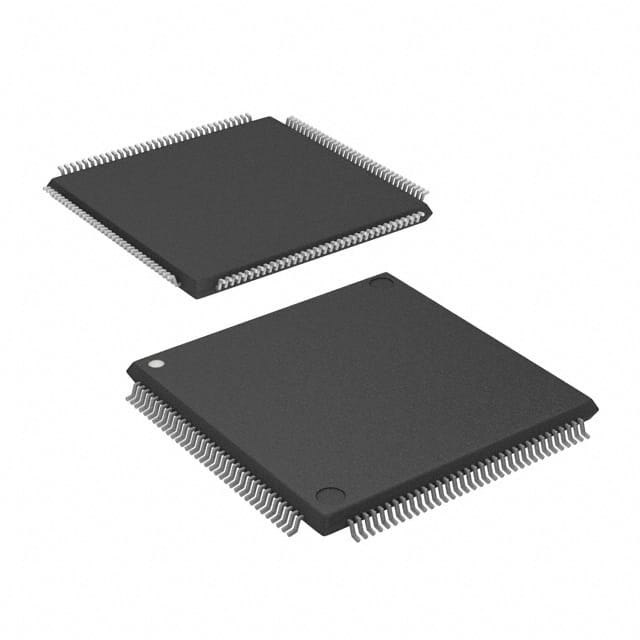

The EPM3256ATI144-10N is available in a 144-pin LQFP package suitable for surface mounting. It is designed for industrial temperature ranges and offers features like PCI compatibility and an open-drain output option.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The EPM3256ATI144-10N has 5,000 usable gates.
This device contains 256 macrocells.
The pin-to-pin logic delay is 7.5 ns.
The MultiVolt I/O interface supports 5.0-V, 3.3-V, and 2.5-V logic levels.
The device is supplied in a 144-LQFP package.
The RoHS status is listed as RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
