EPM3256AFC25610 The Altera EPM3256AFC25610 is a CPLD from the MAX 3000A series. It features 256 macrocells and operates with an internal supply voltage between 3V and 3.6V.
Mfr Part #:

EPM3256AFC25610

Available from 1 distributors
Mfr Name: Altera
Altera
The Altera EPM3256AFC25610 is a CPLD from the MAX 3000A series. It features 256 macrocells and operates with an internal supply voltage between 3V and 3.6V.
✓ Total Stock: 2,127 pcs
$ Price Range: $0.50

EPM3256AFC25610 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
2,127 pcs
On Request
2127 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EPM3256AFC25610 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Operating Temperature
Programmable Type
Supplier Device Package
View Similar Products (0)

EPM3256AFC25610 Description

Short technical summary and product information.

The Altera EPM3256AFC25610 is a Complex Programmable Logic Device (CPLD) belonging to the MAX 3000A series. This obsolete part offers 256 macrocells and 16 logic elements/blocks, with a total of 5000 gates.



Designed for in-system programmability, it supports 161 I/O pins and operates with an internal supply voltage ranging from 3V to 3.6V. The maximum propagation delay is 10 ns. The device is specified for an operating temperature range of 0°C to 70°C.

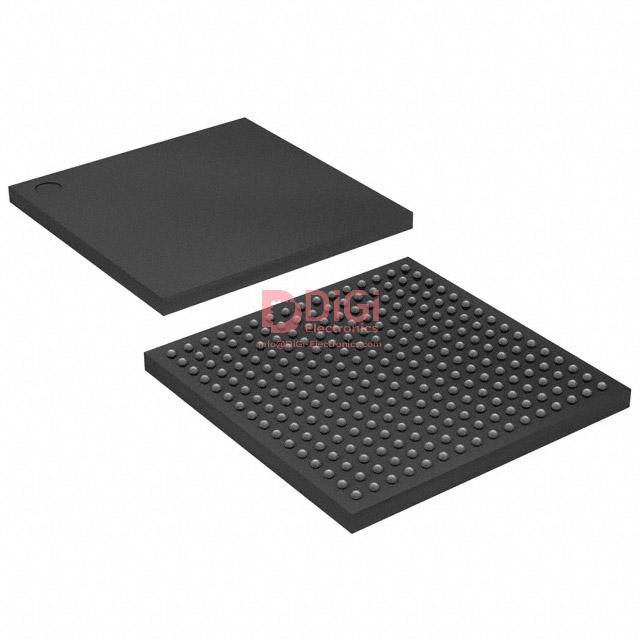

This CPLD is housed in a 256-FBGA (17x17) package and is designed for surface mounting. Its product status is listed as obsolete.

EPM3256AFC25610 Quick Information

Product Type: CPLD
Series: 3000A
Canonical Name: Altera EPM3256AFC25610 CPLD
Subcategory: Complex Programmable Logic Devices

EPM3256AFC25610 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EPM3256AFC25610 Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

EPM3256AFC25610 Features

  • 256 macrocells for complex logic.
  • 10 ns maximum propagation delay.
  • 3V to 3.6V internal supply voltage.
  • Surface mount 256-FBGA package.
  • 0°C to 70°C operating temperature range.

EPM3256AFC25610 Applications

  • Used in glue logic and interface bridging.
  • Suitable for control and state machine implementations.
  • Ideal for prototyping and low-volume production.
  • Can be used in telecom and networking equipment.

EPM3256AFC25610 FAQs

7 frequently asked questions generated from this part’s specifications.
How many macrocells does the EPM3256AFC25610 have?

256 macrocells.

What is the supply voltage range?

3V to 3.6V.

What is the maximum propagation delay?

10 ns.

What is the operating temperature range?

0°C to 70°C.

What package is the device available in?

256-BGA (256-FBGA 17x17) surface mount.

Is the device programmable?

Yes, it is in-system programmable.

What is the product status?

Obsolete.
