| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26,040 pcs
|
26040 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7,445 pcs
|
7445 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,800 pcs
|
1800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Delay Time tpd(1) Max | |
| Mounting Type | |
| Number of Gates | |
| Number of I | |
| Number of Logic Elements | |
| Number of Macrocells | |
| Operating Temperature | |
| Programmable Type | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage Supply |
The Intel EPM3064ATI44-10N is a high-performance, low-cost CMOS EEPROM-based programmable logic device (PLD) from the MAX 3000A family. It offers 64 macrocells and 1250 usable gates, with a maximum propagation delay of 10 ns. This device supports in-system programmability (ISP) and operates within a supply voltage range of 3V to 3.6V.
The EPM3064ATI44-10N is housed in a 44-TQFP (Thin Quad Flat Pack) package, suitable for surface mounting. It features 34 user I/O pins and an industrial temperature range of -40°C to 85°C (TA). The device is designed for applications requiring flexible logic implementation and high-speed performance.
Key features include MultiVolt I/O interface compatibility, allowing core operation at 3.3V while I/O pins support 5.0V, 3.3V, and 2.5V logic levels. It also supports hot-socketing and has a programmable interconnect array (PIA) for predictable performance. The device is PCI compatible and includes a bus-friendly architecture with programmable slew-rate control.
The EPM3064ATI44-10N has 64 macrocells.
The maximum propagation delay (tpd) for the EPM3064ATI44-10N is 10 ns.
The device operates within a supply voltage range of 3V to 3.6V.

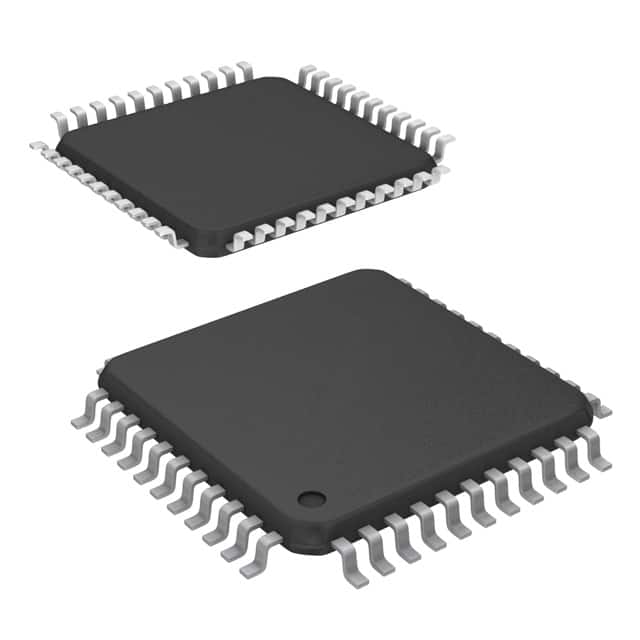

The EPM3064ATI44-10N is supplied in a 44-TQFP package.
The operating temperature range is -40°C to 85°C (TA).
The EPM3064ATI44-10N is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
